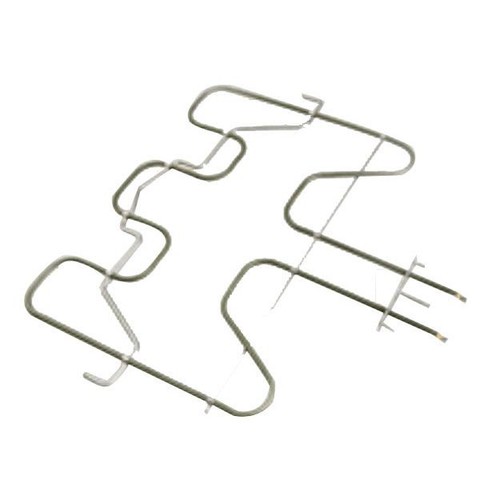

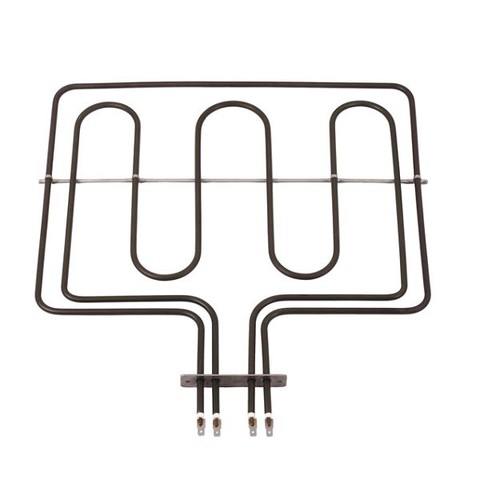

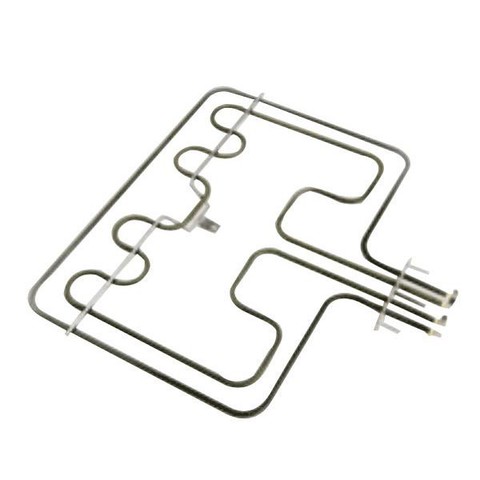

Electric Oven Grill Heater

Electric oven Grill heater is the tubular heating elements designed and made based on the application and the inner structure condition of the electric oven.The Electric Oven grill heater can be made and designed to any shape or any sizes by Jaye industry based on the application requirements from our clients.
Chat Now

Product Details

Electric Oven Grill Heater


Electric oven Grill heater is the tubular heating elements designed and made based on the application and the inner structure condition of the electric oven. The Electric Oven grill heater can be made and designed to any shape or any sizes by Jaye industry based on the application requirements from our clients. The Electric oven grill heater made by Jaye industry have the advantage of high heat transfer efficiency, even heating and long life time service. Air flow, volatility, corrosive nature, and watt density are just a few of the factors to be analyzed within the design process of an air heater. Jaye industry always use the highest level of resistance heating wire, MGO powder and Stainless steel or Incoloy pipes to ensure the best thermal transfer and insulation resistance.


Specification:

Product Name

Oven electrical heating element

Size

Customized

Insulation resistance

≥50MΩ

Leak current

≤0.05mA(cold condition) ≤0.75 mA (hot condition)

Tube Material

SUS304 /840/310S

Voltage/wattage

220V-240V/1200W

Tube Diameter

6.5mm,6.6mm,8mm or as request

Resistance powder

Magnesium oxide

Wire Spec.

0.3,0.32,0.4,0.48…or as request

Thermal fuse

Iron chromium

Feature

1. Superior internal electrical insulation and heat conductivity

2. Durable and low cost

3. Easy to replace thus eliminating long shut-down periods

4. Configurable to virtually any shape

5. Excellent corrosion resistance

6. Easy installation


When you have enquiry, Please let us know the below information:
1. The material of the Pipe
2. Voltage and Watt of the Oven Heater
3. Tube Diameter and length.
4. Drawing is preferred
5. Order quantity
