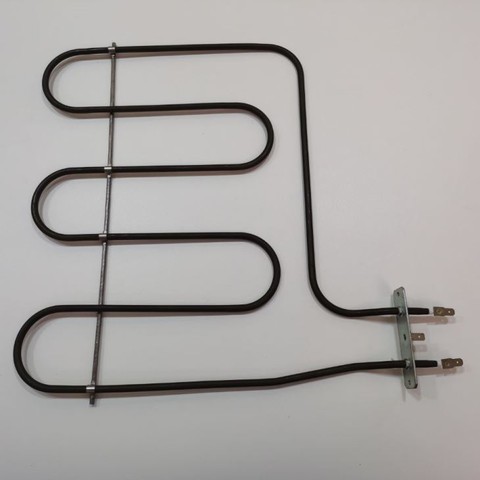

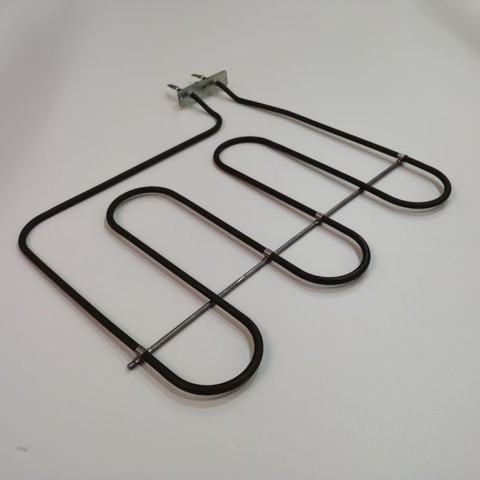

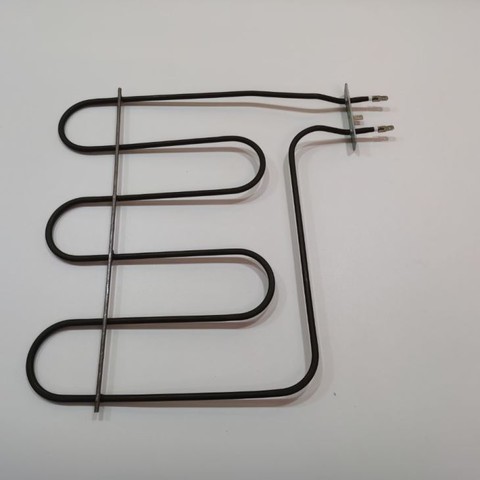

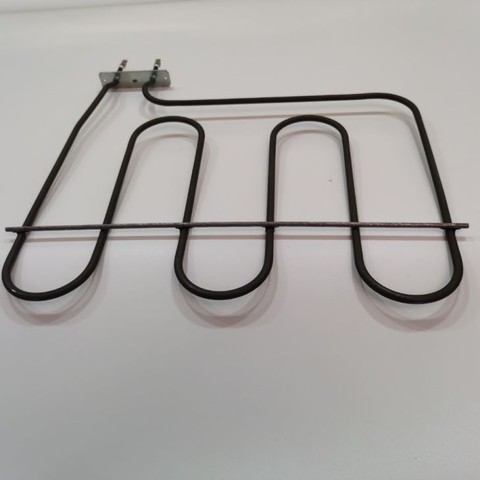

Electric Oven Cooker Heating Element

Electric oven cooker heating elements made by Jaye industry that can be bent into M-shape or other special requirements according to customer requirements, can be selected from nickel-chromium alloy wire or iron-chromium aluminum alloy as heating wire materials. Nickel-chromium alloy wire has...
Chat Now

Product Details

Electric oven cooker heating elements made by Jaye industry that can be bent into M-shape or other special requirements according to customer requirements, can be selected from nickel-chromium alloy wire or iron-chromium aluminum alloy as heating wire materials. Nickel-chromium alloy wire has good vibration resistance, and iron-chromium aluminum alloy can withstand high temperature. The tube has binding post, high temperature wiring and a helical nozzle.



Specifications of Oven Cooker Heating Element:

Tube Diameter: φ6mm-30mm

Tube material: incoloy800, SUS304, SUS321, SUS316, etc.

Sheath: 6.6mm; 8mm

Insulation Material: MGO

Wattage: up to 3000W

Temperature: 800℃ maximum

Sealing: RTV, silicone oil, recoated MGO

Conductor Material: Nichrome Resistance Wire

Wattage Density: High/Middle/Low (5-25W/cm2)

Lead Connection Option: Thread Stud Terminal or Lead Wire

Lead Wire Type: 300mm Standard (Teflon/Silicone High Temperature Fiberglass are available for Electric Oven Heater)

Application: Electric Oven



Advantage of Jaye Over Heating Elements:



  1. High heating efficiency and reach about 95%.

  2. High temperature, permitted working temperature 900℃

  3. Quickly heating up, calculate the power according to the customer's expectation

  4. Easy installation and replacement, and convenient screw tightening;

  5. Long life; standard surface load requirements, the warranty period is normally one year.
