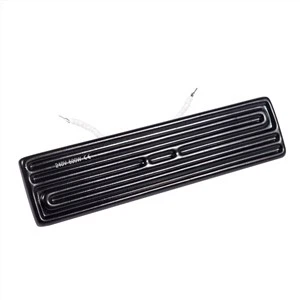

Radiant Ceramic Heater Panels For Medical Equipment Sterilization
Product Details
In the world of medical sterilization, there's no room for compromise. Contamination risks must be eliminated, and equipment must perform flawlessly-every single time. That's where Radiant Ceramic Heater Panels come in. Designed for precision, durability, and efficiency, these advanced heating panels provide uniform, high-performance heat distribution, ensuring medical instruments and devices are sterilized to the highest standards.
Why Choose Radiant Ceramic Heater Panels?
Medical facilities demand reliability, and our heater panels deliver just that. Here's what sets them apart:
- Ultra-Fast, Consistent Heating – Unlike conventional heating elements, our ceramic panels warm up quickly and maintain a stable, even temperature, eliminating weak spots that could compromise sterilization.
- Superior Heat Transfer – The infrared radiant heating technology penetrates deeply, ensuring thorough decontamination without overheating sensitive instruments.
- Engineered for Longevity – Built with high-density ceramic cores and corrosion-resistant materials, these panels withstand repeated sterilization cycles without degradation.
- Precision Control – Customizable temperature settings allow for optimal heat adjustment based on different sterilization protocols, from delicate surgical tools to heavy-duty equipment.
- Safe & Low Maintenance – With no exposed coils or open flames, the risk of contamination is minimized, and upkeep is hassle-free.
Radiant Ceramic Heater Panels for Medical Sterilization - Technical Specifications
| Parameter | Specification | Details |
|---|---|---|
| Heating Element | High-density ceramic infrared heating element | - |
| Power Rating | 500W - 3000W | Adjustable based on panel size |
| Voltage | 110V/220V AC, 50/60Hz | Custom voltages available |
| Temperature Range | 100°C - 600°C | PID controlled with ±2°C accuracy |
| Heating Time | ≤3 minutes to reach 300°C | Ambient temperature 25°C |
| Surface Material | Medical-grade stainless steel (304/316) or anodized aluminum | Corrosion-resistant |
| Thermal Efficiency | ≥95% | - |
| Dimensions | Standard: 200×100×25mm to 600×400×30mm | Custom sizes available |
| Mounting | Flange mounting or threaded inserts | VESA compatible options |
| Protection Class | IP54 (standard), IP67 (optional) | Dust and moisture resistant |
Where Are They Used?
These panels are trusted in critical medical and laboratory environments, including:
Autoclaves & Sterilization Chambers – Ensuring 100% pathogen elimination.
Surgical Instrument Processing – Reliable heat for high-stakes sterilization.
Pharmaceutical Cleanrooms – Maintaining sterile conditions in drug production.
Laboratory Equipment Sanitization – Protecting sensitive research from microbial interference.
Built for the Demands of Modern Medicine
Healthcare doesn't stop, and neither should your sterilization systems. EDM Radiant Ceramic Heater Panels are designed for 24/7 operation, offering energy-efficient performance without sacrificing power or precision. Whether you're equipping a hospital sterilization unit, a dental clinic, or a biomedical research lab, these panels provide dependable, consistent heat-exactly when and where it's needed.
Need a Custom Solution?
Every medical facility has unique requirements. We work with you to tailor heater panels to your specific sterilization needs-contact us today to discuss your project!
