Ceramic Infrared Heating Element
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ceramic infrared heating element in China, also supports custom service. Welcome to wholesale high quality ceramic infrared heating element at competitive price from our factory.

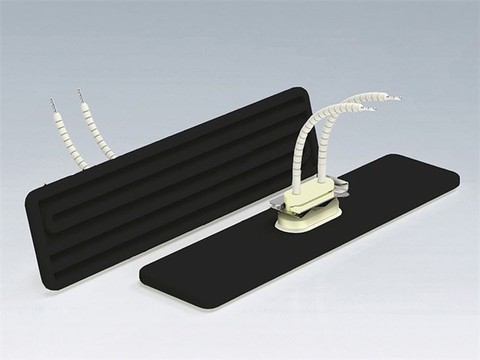

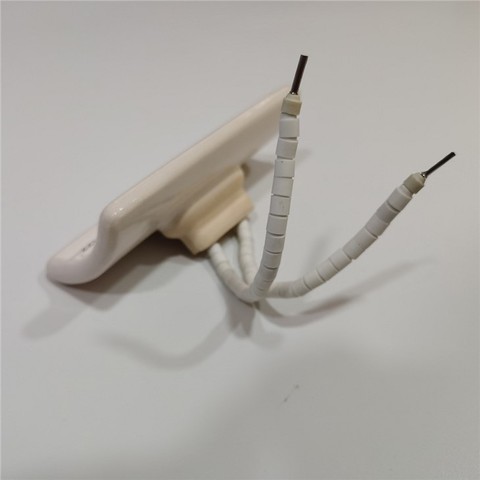

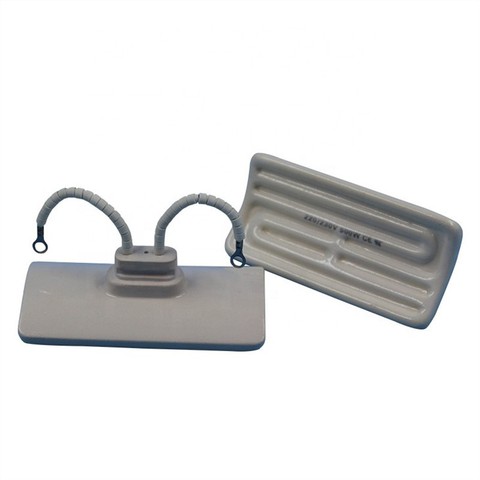

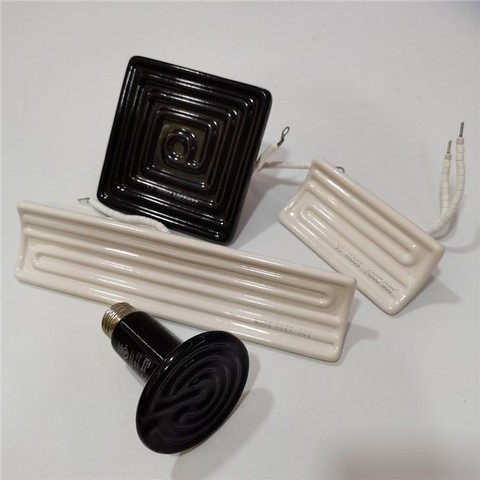

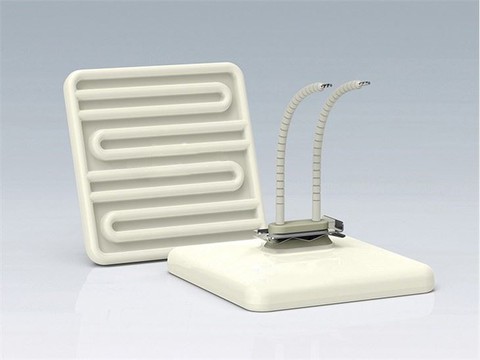

Ceramic Infrared Heating Element are widely applied into industril field. It can work on the high temperature 750 degrees. The ceramic infrared heating element can provide effective and efficient long-wave infrared radiation, producing infrared wavelengths in the 2-10 micron range.
Specification of Ceramic Infrared Heating Element
Heater Colour | White, Pink,Black,Yellow |
Rated voltage | 220V-240V 380V 440V 480V |
Material | Ceramic ,Nickel 80 resistance wire inside |
SIze | 245*60MM (or customized) |
Shape | curved,flat,hollow |
Thermocouple | K or J type, if need |
Working lIfe | More than 8000 hours |
Warranty | 1 year |
Components of Ceramic Infrared Heating Element
1. Matrix: composed of ceramic materials with good thermal shock resistance;
2. Heat generation: made of high-quality nickel-chromium alloy wire;
3. Glaze layer: It is composed of metal oxide raw materials with good far-radiation performance and an appropriate amount of additives is added to improve the radiation intensity and enhance the adaptability of the glaze.
Application of Ceramic Infrared Heating Element
Ceramic Infrared Heating Element can be used in the following aspect:
1. heating Footwear processing
2.Vacuum forming machine, Compression Molding Machine
3.Drying like Printing ink dryer, Electric heating tables
4.Heating in vertical or half round array
