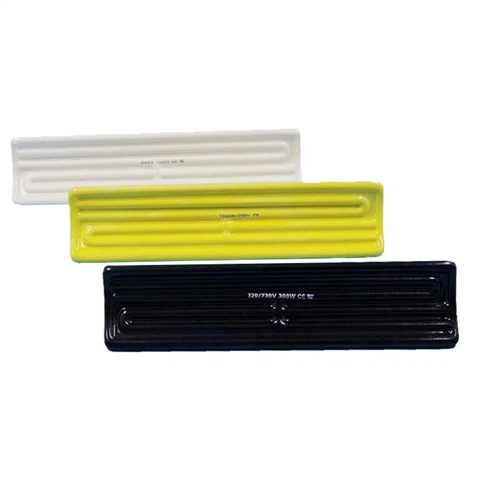

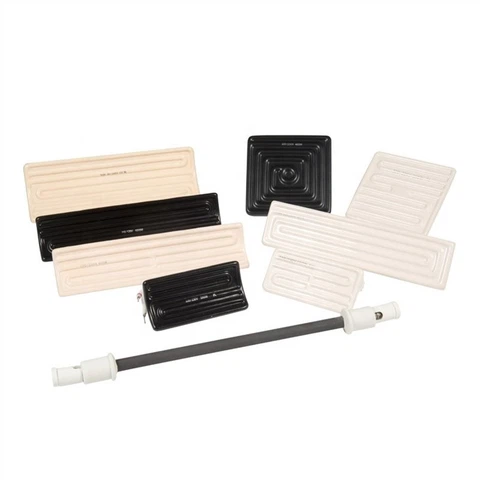

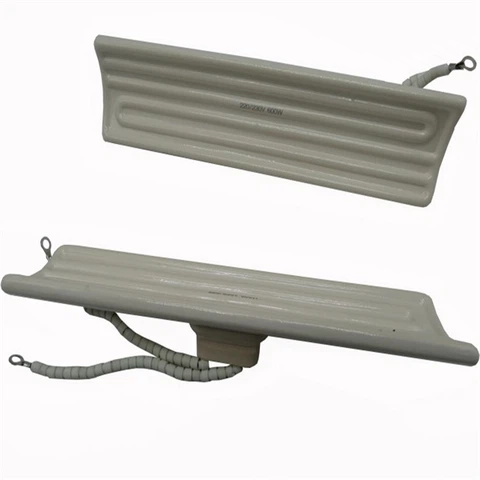

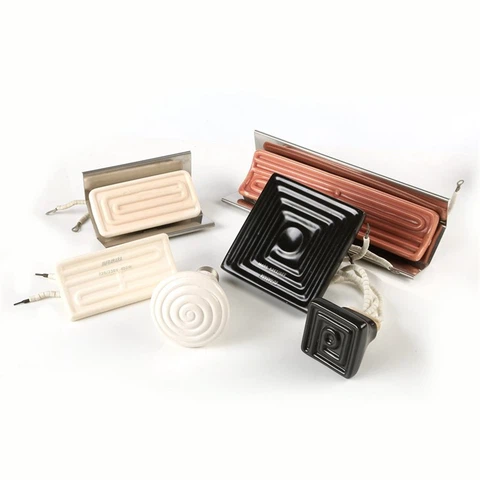

Ceramic Infrared Commercial Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ceramic infrared commercial heater in China, also supports custom service. Welcome to wholesale high quality ceramic infrared commercial heater at competitive price from our factory.
Description of ceramic infrared commercial heater
Ceramic infrared heater panels make use of conductors made of quartz glass, which can withstand temperatures of 1800 degrees Celsius, and silicon at more than 95%. After a chemical reaction, they produce infrared radiation. Cast resistance Cr20Ni80 spiral wire is inserted into the conductor. In the plastics, chemicals, light industrial, electronic, pharmaceutical, and food industries, among others, infrared ceramic heaters are widely utilized due to their advantages in thermal efficiency, radiation, safety, and energy conservation. Vacuum forming, baking, medicine dehydration, and medical care are its primary applications.
Description ceramic infrared commercial heater
| Product name | ceramic infrared commercial heater |
| Risistence wire | Cr20Ni80 |
| Size | 292*92mm,245*60mm,122*122mm,122*60mm,60*60mm |
| Color | white,pink,black,yellow |
| Shape | curved/falt/hollow |
| Power | 125-1500W |
| Voltage | 110-440V |
Products Application
Application
- Thermoforming & Vacuum Forming Machines
- PVC Pipe Belling / Socketing Machines
- Hot Stamping Machines
- Heat Therapy Equipment
- Shrink Packaging
Order tips
When order,please specify:
- Type: Trough, Hollow and Flat
- Size:245*60mm,245*80mm and other can be customized.
- Vottage :380V,240V, 220V,200V,110V and other can be customized.
- Wattage :125W,150W,200W,250W,300W and other can be customized.
- Thermocouple
- Quantity
