Ceramic Bobbin Radiant Oven Heater

Electric ceramic bobbin radiant tube heater is featured by excellent oxidation resistance and very good form stability resulting in long element life time.they are typically used in electrical heating elements in industrial furnaces equipment.
Chat Now

Product Details

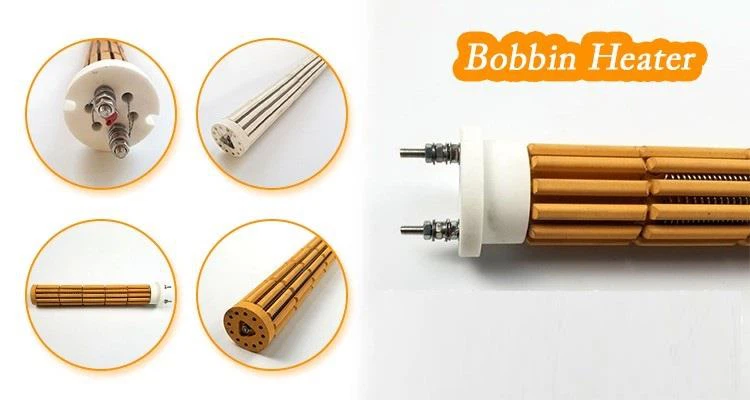

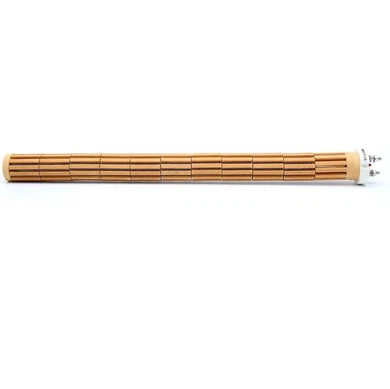

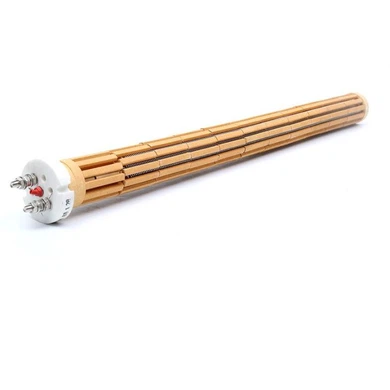

Ceramic Bobbin Radiant Oven Heater

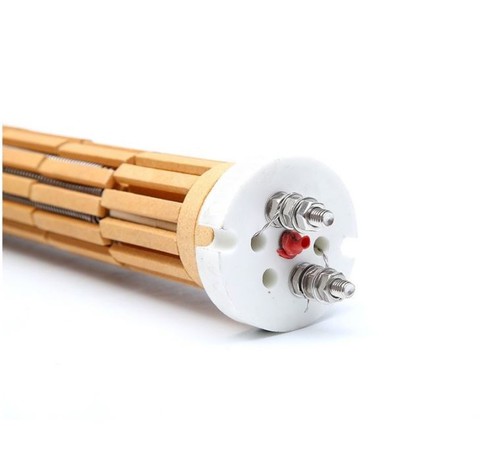

Electric ceramic bobbin radiant tube heater is featured by excellent oxidation resistance and very good form stability resulting in long element life time.they are typically used in electrical heating elements in industrial furnaces equipment. It can offer a large surface area to heat liquids or semi-solid materials such as water, oil, wax, fats, and bitumen. These heaters are mainly used for direct heating of air and indirect heating of liquids and gases where the element is fitted. The inner core of the ceramic bobbin radiant tube heater is composed of the resistance wire and ceramic support frame.There is no shield between inner core and the outer protective sleeve.Its heat dispersion is very good.The rated working temperature of electric heating radiant tube is 1000 degrees.The material of resistance wire Cr20Ni80 or 0 cr21Al6Nb. The surface temperature can reach 1200 degrees.The highest working temperature of this kind of electric heating radiant tube can reach1000 degrees.The frame use high alumina ceramic.The outer protective casing is made of cold drawing seamless thin-wall heat-resisting steel, The material has high temperature and good oxidation resistance,better high temperature creep strength. Electric ceramic bobbin radiant heater is often used in furnace heating.

Electric ceramic bobbin radiant tube heater made by Jaye Industry flex to allow easy installation and handling. Our customers includes many heat treatment equipment manufacturers from home and abroad. Besides, We can also design and manufacture non-standard products of heater according to customers’ requirement.



Key Technical Parameter

Product Name

Radiant Tube

Power for each element:

10kw to 40kw(can be customized in accordance with

Size

Customer's requests)

Working voltage

0v to 380v( can be customized)

Useful heating length

500 to 2400mm( can be customized)

Outer diameter

80mm- 280mm(can be customized)

Insulation Resistance (cold )

≥500 MΩ

Maximum Escape of Current (cold)

≤0.5 mA;

Dielectric strength

No electric breakdown for 1minute under 1500v

Max Operating Temperature

750℃

Delivery Time

7-10 days after payment


Application for Ceramic Bobbin heating element:

1. Heat treatment furnaces

2. Automotive industry,

3. Mechanical industry, Auto parts and accessories

4. Medical Instrument,liquid and gas heating

5. Power engineering industry etc


Usage of Ceramic Bobbin Radiant Oven Heater

1. Avoid to heat over the temperature and overload for long time

2. When the furnace temperature higher than 400 degrees, avoid to be cold immediately.

3. Unload and load the material can't touch the ceramic heater

4. Pay attention to the red and blue buttons when the furnace on work, and change regularly when on thermal insulation

5. Pay attention to the instrument meter, and deal with in time when the furnace temperature is not matched with the meter.

6. The furnace Capacity over 100KW, it'll be better to fix the ammeter for check in every heat area.


Packing and Delivery:

Packaging for Electric infrared ceramic bobbin heater for boiler

Polybag+carton or wooden box , or based on customers' request


Shipping for Electric infrared ceramic bobbin heater:

1) Shipping by express (sample order) or by sea(bulk order)

2) Worldwide shipping service available

 Application:

Automotive industry(001)(001)Roasting oven(001)(001)Glass Annealing(001)(002)
Automotive industryRoasting ovenGlass Annealing
Heat treatment furnaces(001)(001)Turbine heat treatment(001)(001)
Heat treatment furnacesTurbine heat treatment


Hot Tags: ceramic bobbin radiant oven heater, China, manufacturers, suppliers, factory, customized, electric, high quality

Packing & Delivery

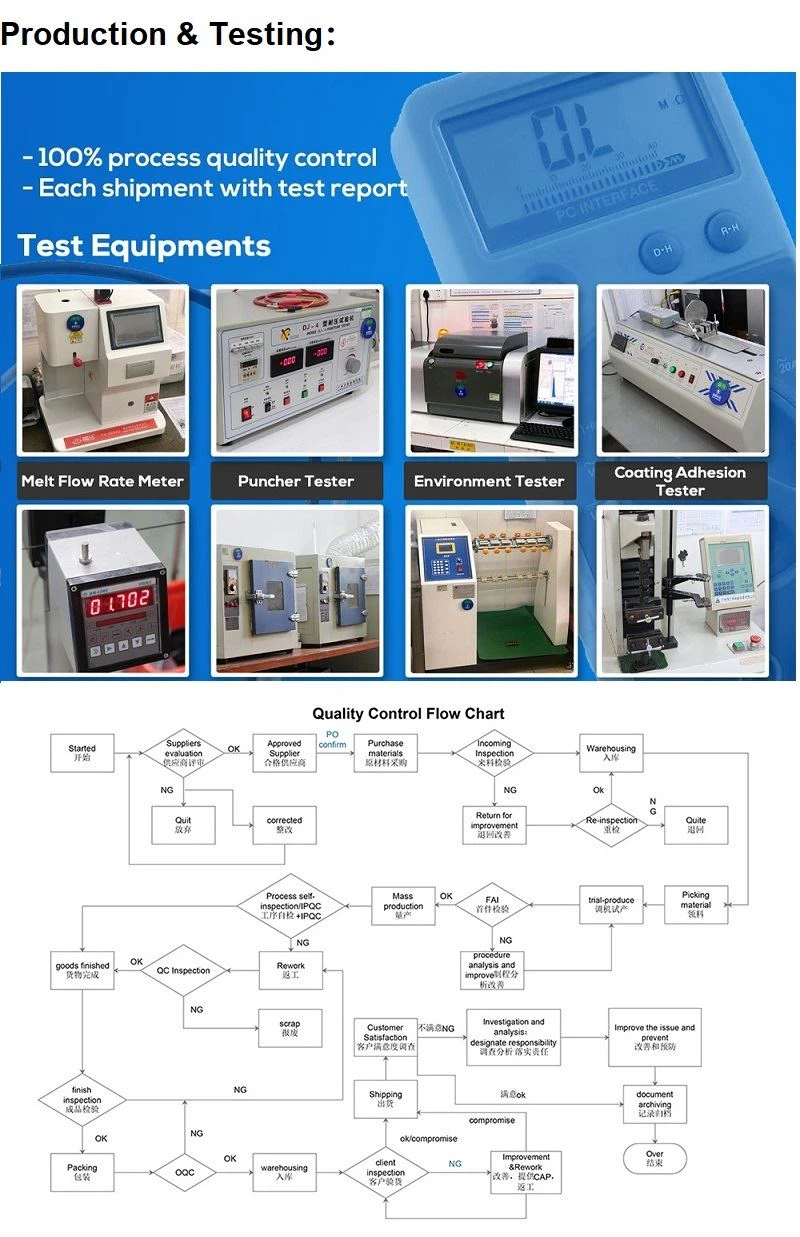

 Quality-Ceramic  Infrared heater
