Tubular/ Electric Heating Element Cartridge Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of tubular/ electric heating element cartridge heater in China, also supports custom service. Welcome to wholesale high quality tubular/ electric heating element cartridge heater at competitive price from our factory.

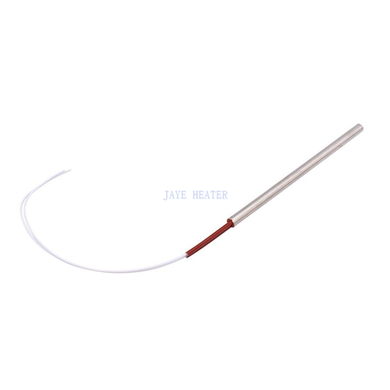

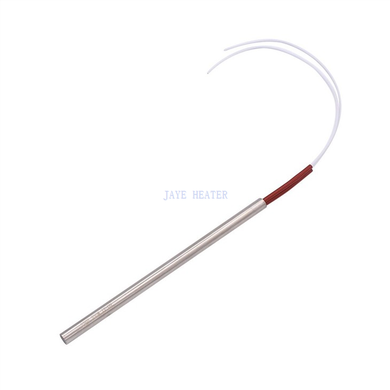

Tubular/ Electric Heating Element Cartridge Heater is a piece of equipment made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used for plastic injection moulds, die, platens and so on.

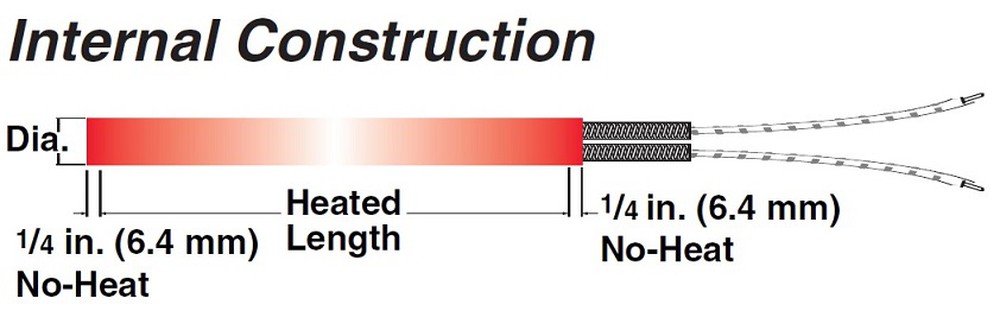

A cartridge heater is a type of heating element that is commonly used in industrial applications for heating liquids, gases, and solid materials. It consists of a cylindrical stainless steel sheath or tube, which houses an electric resistance heating element made of nickel-chromium wire. The heating element is often coiled around a ceramic or mica core, which is then inserted into the sheath and surrounded by insulation material to prevent heat loss.

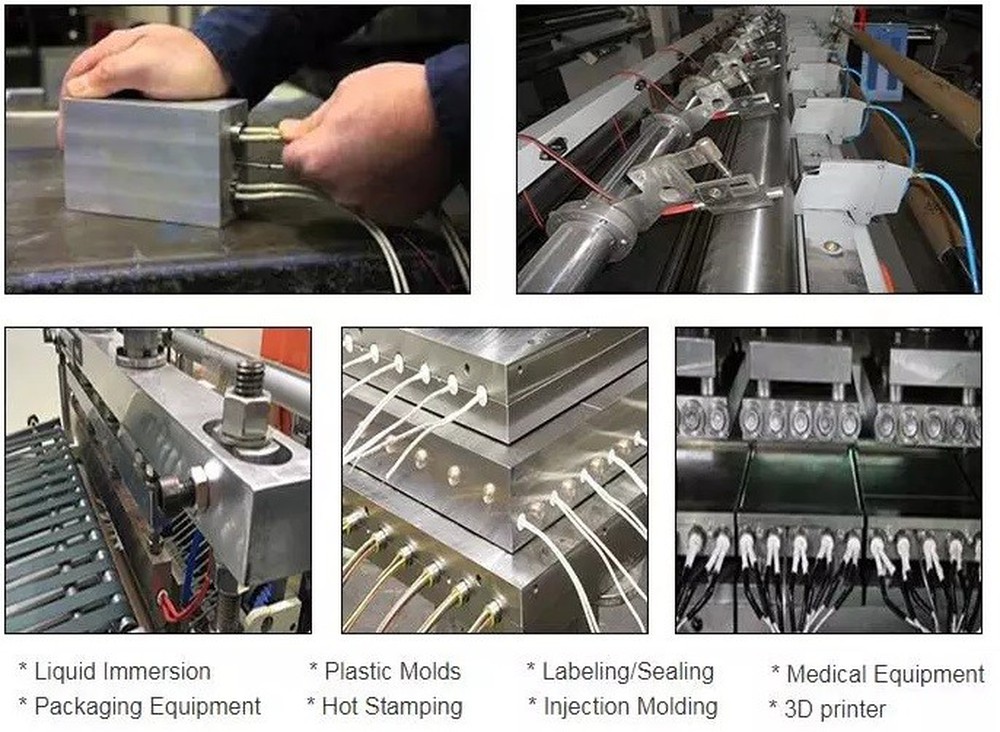

Cartridge heaters are typically used in applications where high temperatures and precise heating control are required. They are commonly used in the plastics industry for heating molds and extruders, in the food industry for heating ovens and cooking equipment, and in the medical industry for heating fluid and gas lines.
Specifications
|
Sheath Material |
SUS 304/316/ Incoloy 840 |
| Spirals | Nickel - Chrome |
| Insulation | Magnesium Oxide Powder |
| Voltage Supply | 12V to a maximum of 480V |
| Maximum Temperature | 750 °C |
| Resistance Tolerance | +10% - 5% |
| Wattage Tolerance | +5% - 10% (closer tolerances are available upon special request) |
When Ordering high temperature resistance cartridge heater , please specify the following information :
a. Type of Cartridge Heater ( please refer to Termination Options )
b. Tube diameter of cartridge heater
c. Overlength of catridge heater
d. Wattage & Voltage
e. Lead type ( glass fibre / PTFE ) & lead length
