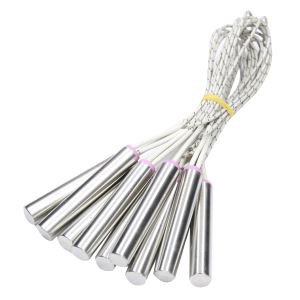

Swaged In Lead Cartridge Heater For Platen Heating

Swaged In Lead Cartridge Heater For Platen Heating

​Swaged in lead cartridge heater used in new energy vehicle heating, lithium battery packaging machinery, smokeless barbecues, plastic molding molds, hot press molding machinery, cigarette machinery, pharmaceutical machinery, footwear industry, 3D curved glass molding machine, packaging machinery and other equipment.
Chat Now

Product Details

Swaged in lead cartridge heater used in new energy vehicle heating, lithium battery packaging machinery, smokeless barbecues, plastic molding molds, hot press molding machinery, cigarette machinery, pharmaceutical machinery, footwear industry, 3D curved glass molding machine, packaging machinery and other equipment.

 A-用途

Technical Parameter:

●Electric heating tube diameter: φ3mm, φ4mm, φ5mm, φ6mm, φ8mm, φ9.5mm, φ10mm, φ12mm, φ16mm, or φ3mm-φ25mm can be made.

●Diameter error: -0.02mm-0.08mm

●Electric heating pipe: SS304, SS321, SS316L, INCOLOY840

●Insulation material: highly imported magnesium oxide powder

●Heating wire: Ni80Cr20

● Watt density: maximum 40W/CM2

●Use temperature: the tube surface temperature is up to 927℃

●Electrical performance: Leakage current is less than 0.5mA

●Input power and power: customized as required, power deviation is +5%-5%

●Outgoing way: direct outgoing or indirect outgoing

●With temperature measurement model: adopt imported temperature sensor line (K type, J type)

 Quality

Features:

●High service life, advanced design of internal structure, imported high-purity magnesium oxide new rod and filling material, super thermal conductivity.

●Special grinding equipment is used to ensure the former appearance size, and it is closely matched with the equipment assembly. It has the characteristics of high thermal efficiency and fast heat dissipation.


Application-Cartridge Heater

Hot Tags: swaged in lead cartridge heater for platen heating, China, manufacturers, suppliers, factory, customized, electric, high quality

Packing & Delivery

Quality-Cartridge Heater
