Metal Processing Cartridge Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of metal processing cartridge heater in China, also supports custom service. Welcome to wholesale high quality metal processing cartridge heater at competitive price from our factory.
Metal Processing Cartridge Heaters, or cartridge heaters, are cylindrical heating elements with a heating element wrapped around a ceramic core. These heaters provide a pleasing and dependable approach to apply focused heat at high temperatures, particularly where compact, insert type heating are required. Cartridge heaters are known for their extended life and maintenance free operation. Heating elements are in contact with the material being heated for optimal heat transfer. Swaged construction minimizes air gaps, enhancing efficiency, and heat transfer. Low, medium and high watt densities are compatible with cartridge heaters. They are engineered to withstand a working temperature of 700 °C.
Specification
| Product name | Metal Processing Cartridge Heater |
| Diameter | 3mm or customized |
| Internal thermocouple | type J or K |
| Material | SUS201, 304, 321, 316, and Incoloy800, 840 |
| Connection Type | Threaded, Terminal, Lead Wires |
| Power range | 50W – 5000W |
| Voltage | 12V, 24V, 110V, 220V, 380V (Customizable) |
| Resistance Wire |
|

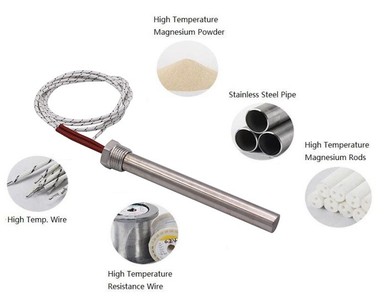

Construction
- High-temperature lead wires are made of fiberglass or silicon rubber, which will withstand temperatures of up to 550°C, in order to transfer current.
- Nickel-chromium heating element is wound, is evenly wound over a ceramic core to transfer heat.
- Ceramic cap, sealed with epoxy or cement, to resist contamination and withstand high vibrations.
- The insulation will be magnesium oxide, compacted to give exceptional dielectric strength and thermal conductivity.
- The outer metal sheath will be either a stainless steel or Inconel sheath to resist heat and oxidative environments.
- Sealed at the end to prevent contamination and formation of moisture.
Applications
-
Injection Molding Machines: Used for heating the molds and heating the plastic before it is injected into the mold, allowing the plastic to be kept at a constant temperature.
-
Extruders: Used to keep the temperature of melted extruded plastics or metals hot during the extrusion process.
-
Heat Treatment Equipment: Such as furnaces, annealing furnaces, and quenching furnaces, used to heat metals involved in heat treatment equipment.
-
Packaging Equipment: Used in sealing machines to heat the area to be sealed, used for package sealing.
-
Die Casting Machines: Used to heat the metal molds to prevent metal from sticking to the mold while casting.
-
Hot Air Furnaces: Used in industrial heating systems to heat air or other gases.
