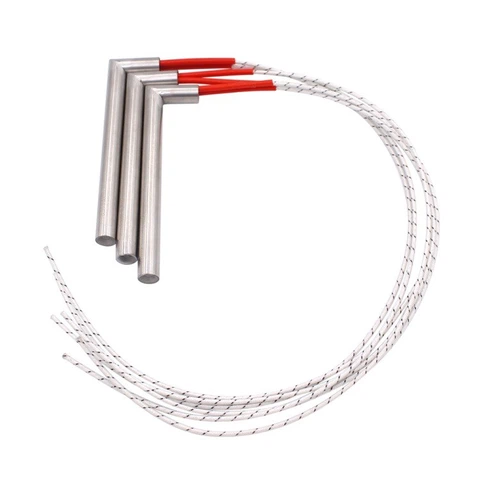

High-Performance Cartridge Heater For Industrial Heating

Name: China Custom High-Performance Cartridge Heater For Industrial Heating Manufacturers, Suppliers, Factory - High Quality - Jaye Heater Technology
Brand: Jaye Heater
SKU: 276786927

A high performance cartridge heater is a type of tubular heating element used to for localized heating in industrial processes that require accurate control. The cartridge heater is inserted in drilled holes in metal blocks for localized heat delivery! it provides heat directly where it needed and demands, uniformly and efficiently. A cartridge heater is made of high quality metals and outer insulations to allow for a respectable service life and consistent operation in high temperature processes.

Chat Now

Product Details

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of high-performance cartridge heater for industrial heating in China, also supports custom service. Welcome to wholesale high quality high-performance cartridge heater for industrial heating at competitive price from our factory.

A high performance cartridge heater is a type of tubular heating element used to for localized heating in industrial processes that require accurate control. The cartridge heater is inserted in drilled holes in metal blocks for localized heat delivery! it provides heat directly where it needed and demands, uniformly and efficiently. A cartridge heater is made of high quality metals and outer insulations to allow for a respectable service life and consistent operation in high temperature processes.

Specification

Sheath Metals	Stainless Steel 304/306/Incoloy
Heating Type	Ni-Chromium as resistance wire
Voltage	12V - 480V AC/DC
Wattage	Max 60 W/cm² or 387W/in²
Wire Types	fiberglass insulation, PTFE or stainless steel braid
Operating Temperature	600 °C (The actual temperature needs to be tested by the customer)

Advantage

High Temperature Capability

Capable of continuous operation at temperatures ranging up to 800°C (1472°F) (dependent upon insulation and material). These heaters can be used in many high temperature industrial processes.

Tight Tolerance

Heaters are designed so that there is a close fit in the drilled hole or block. This allows better heat transfer efficient and minimize hot spots providing maximum uniformity.

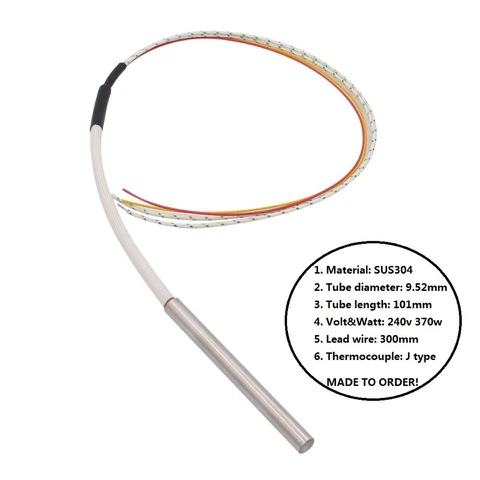

220v-1000w-12mm-diameter-electric-injection 2

Accurate Temperature Control

Can utilize any thermocouple, RTD's or PID controllers for consistent temperature performance. More consistent temperature stability reduces the chance of over-heating or under-heating.

Various Custom Sizes and Power

We have diameters that range from 3 mm to 25 mm, lengths from 20 mm to 500 mm. We can provide a range of wattage and voltage to fit a specific heating requirement.

Cartridge heater

Application

Plastic Injection Molding - Controlled temperature in the nozzle and the mold.
Packaging Equipment - Used sealing bars, hot knives, and conveyor equipment.
Food Processing Equipment - Used heat sealers, bakers, and cookers.
Medical Devices (applications) - Used sterilization and heat processing equipment.
Die Casting - Controlled temperature in the mold and die.
3D Printing - Controlled the temperature of heater for the hot end.
Lab Instruments (applications) - Heat the sample and the testing instruments.
