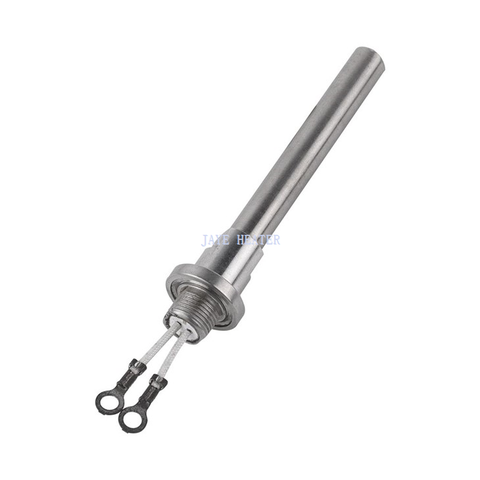

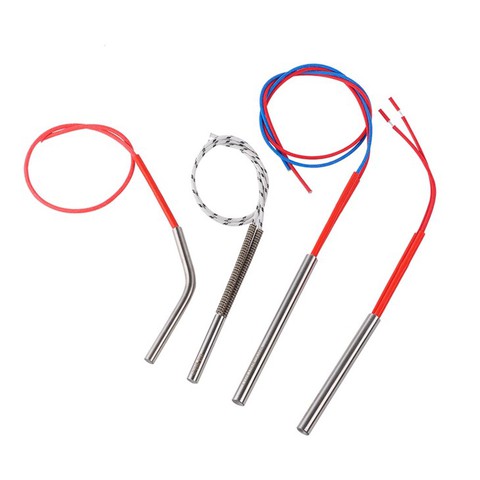

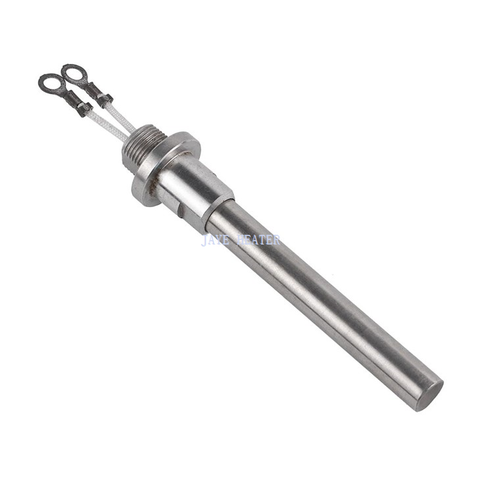

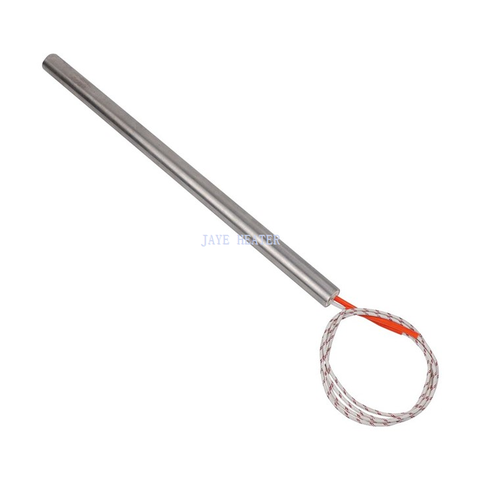

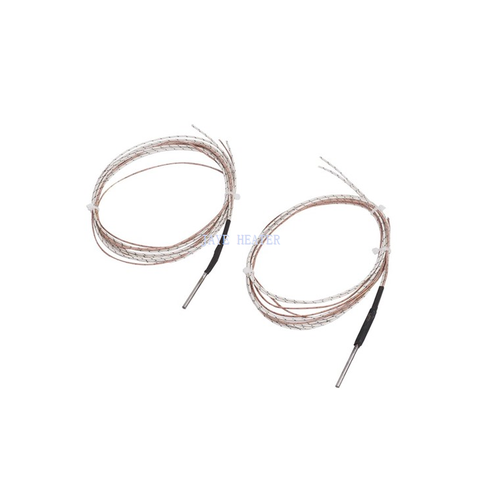

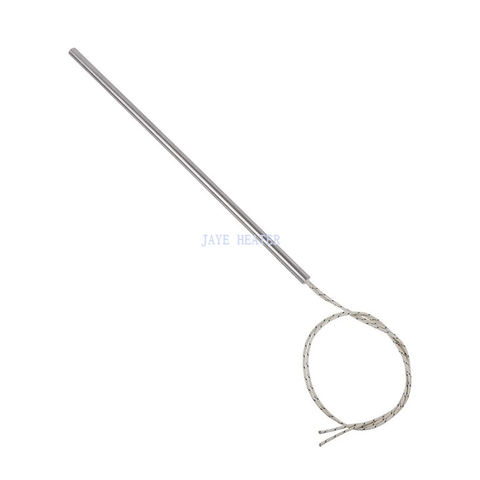

High Density Electric Cartridge Heater For Industrial
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of high density electric cartridge heater for industrial in China, also supports custom service. Welcome to wholesale high quality high density electric cartridge heater for industrial at competitive price from our factory.
High Density Electric Cartridge Heater for Industrial is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,that is used in heating applications.by way of insertion into metal blocks via a series of drilled holes.
High Density Electric Cartridge Heaters are manufactured in two basic forms - high density and low density. High density electric cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
Specifications of High Density Electric Cartridge Heater
| Sheath material: | SUS304,321,316,Incoloy800,840 |
| Wattage Tolerance: | +5%, -10% |
| Resistance tolerance: |
+10%, -5% |
| Voltages available: | 380V,240V, 220V,110V,36V,24V or 12V |
| Max operating temp: | 800ºC |
| Length tolerance: | ±1 mm |
| Diameter tolerance: | -0.02mm |
| Standard Cold Zone: | 5-10mm |
The advantages of High Density Electric Cartridge Heater
* High-Density swaged Cartridge Heater.
* Many diameters offered as standard.
* Alloy sheath for high corrosion resistance.
* Long lifespan, Using high-purity magnesium mandrel and magnesium power for filling, high thermal conductivity.
* Using Centerless Machine to standardize Diameter, high thermal efficiency, fast heat dissipation.
* Advanced technology and equipment make the quality good and stable.
Applications of High Density Electric Cartridge Heater
- Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy.
- Telecommunications: Deicing, Enclosure Heater.
- Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters.
- Food Service: Steamers, Dish Washers.
- Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
