Flat Type Heating Element

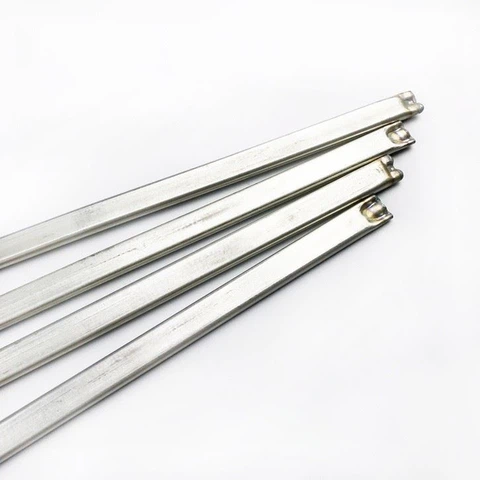

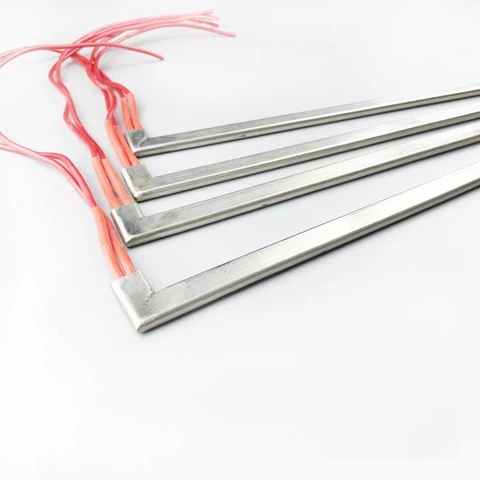

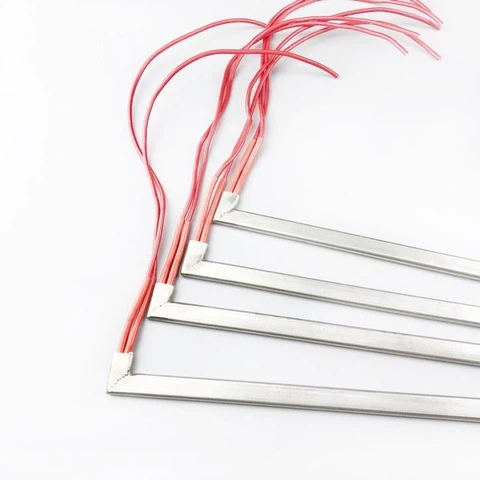

The flat type heating element is a high-compressed heating rod, which is manufactured by nickel-chrome 80/20 resistance wire and magnium-oxide insulation material. Jaye Industry adopts advanced technology to bend, anneal the heating tube. There are available options for single, two or three wire conductor with single or two sided connection.
Chat Now

Product Details

The flat type heating element is a high-compressed heating rod, which is manufactured by nickel-chrome 80/20 resistance wire and magnium-oxide insulation material. Jaye Industry adopts advanced technology to bend, anneal the heating tube. There are available options for single, two or three wire conductor with single or two sided connection.



There are no standard specifications, the mentioned above just for your reference. These flat type heating elements have many advantages over the round heating elements:

1. Excellent heat transfer surface

2. Lower power density

3. Flat design optimizes the element lifetime

4. Short heating time

5. Forming of the heater upon your request.



Specifications:

Tube profile: 13*5.5mm

Weight: approx. 0.35kg

Length: max. 6000mm

Connection: PTFE flexible insulated leads (max. Working temperature: 250℃)

Voltage and power: customized according to your actual needs. (depending on the characteristic of the heater.)

Power density: up to 15W/cm2

Section tolerance: ±0.1mm

Length tolerance: ±2%, with mini.±5mm.

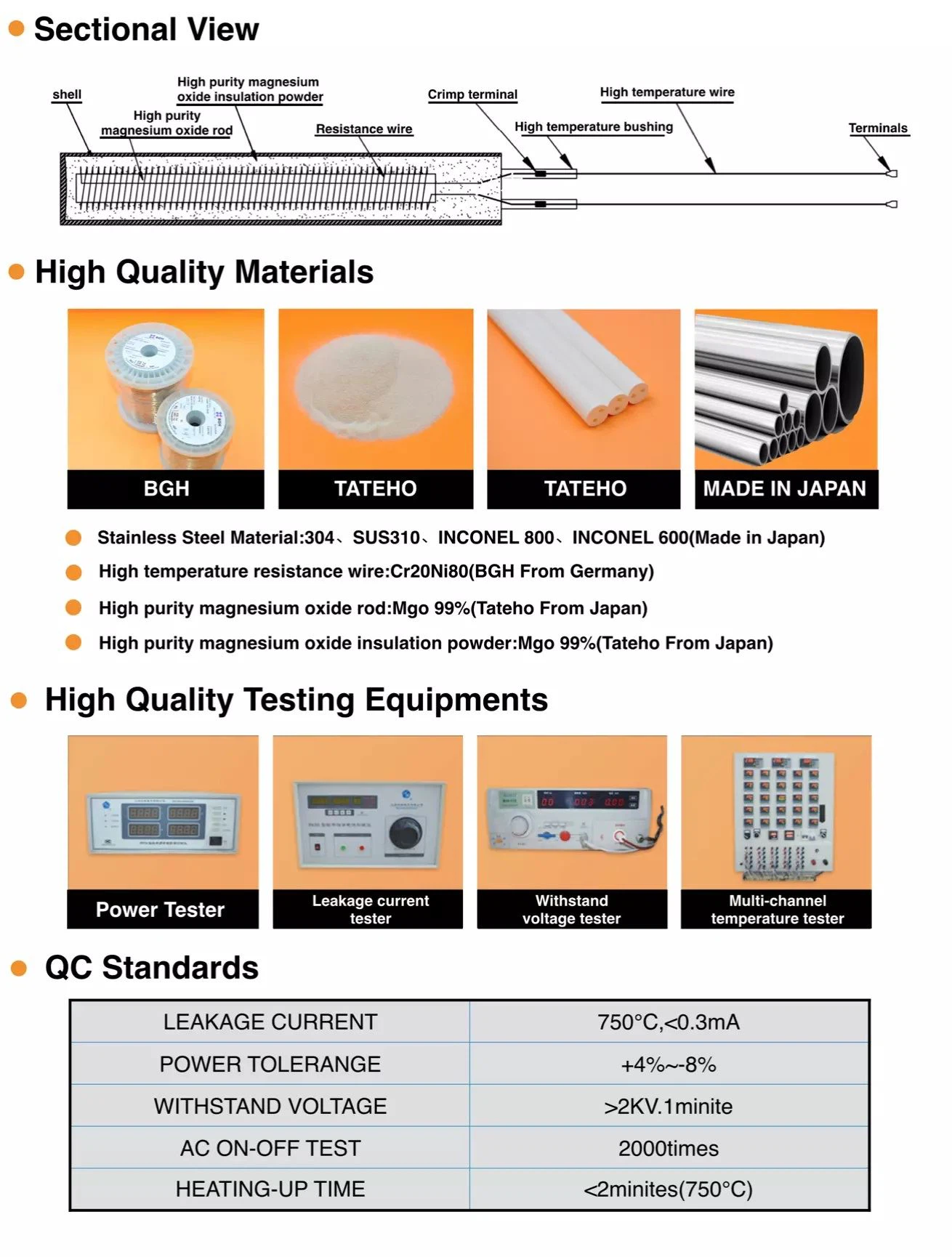

 品质

Additionally, the flat type heating elements can be designed by the following sheath materials:

- Stainless steel

- Copper

- Incoloy 800

- Inconel 600



Or any other materials according using conditions. Please, consult us. If you have drawing will be better, a technical specification sheet will be required for each specially manufactured product. We will try our best to provide you a solution.
