Flat Thermal Heaters
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of flat thermal heaters in China, also supports custom service. Welcome to wholesale high quality flat thermal heaters at competitive price from our factory.
Product Introduction

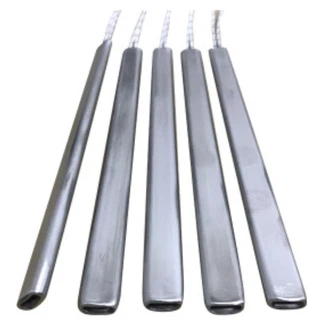

Flat cartridge heaters are a highly cost-effective, compact, and reliable heating solution. They are not often given credit for their importance in semiconductor and electronics manufacturing. Flat cartridge heaters are designed and built to establish liquid like, precise and even heating, in environments where temperature control is critical for the production and assembly of sensitive electronic components. You would be correct to assume that flat cartridge heaters catch a lot of heat! Their size and effectiveness makes them an integral part of many processes associated with semiconductor and electronics manufacturing.
Specifications of Flat Thermal Heaters
|
Power Rating |
How much heat the heater produces (e.g., 50W to 500W) |
|
Voltage |
Common values like 120V, 240V, or custom voltages |
|
Temperature Range |
Heats up to 700°C (1292°F) depending on the model |
|
Size |
Available in various sizes to fit specific equipment (e.g., 50mm x 50mm) |
|
Material |
Made of stainless steel with heat-resistant cores (e.g., ceramic) |
|
Sheath Material |
Typically stainless steel or copper for heat resistance |
Features of Flat Thermal Heaters
- Compact Design: Is compact in size and shape so it can fit where you need it in a small space in equipment or a fixture.
- Overall Heat Distribution: Monitors overall heat which is important for die bonding; soldering etc.
- Durability: Constructed with stainless steel to maximize service life.
- Customizable: Can be manufactured with various sizes, power ratings and voltages.
- Consistent Performance: Designed for providing consistent and reliable performance during a harsh manufacturing process.
How to Use Flat Cartridge Heaters in Semiconductor and Electronics Manufacturing Applications
-
Integration into Equipment:
-
Connect to Power Supply:
-
Temperature Control Setup:
-
Use for Die Bonding:
-
Wire Bonding:
-
Soldering and Reflow:
-
Monitoring and Adjustments:
-
Maintenance and Safety:
Flat cartridge heaters in semiconductor and electronics manufacturing are easy to install, energy-efficient, and provide precise heat control. Proper installation, temperature regulation, and routine maintenance are key to maximizing their performance in die bonding, wire bonding, soldering, and reflow processes.
