Customized Cartridge Heaters
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of customized cartridge heaters in China, also supports custom service. Welcome to wholesale high quality customized cartridge heaters at competitive price from our factory.
Description of customized cartridge heaters

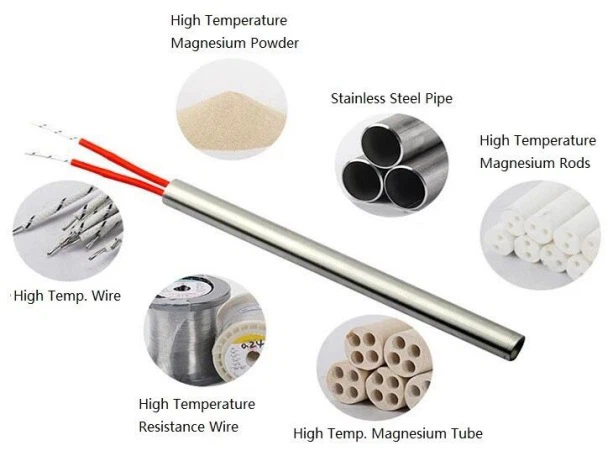

SUS304 or SUS321 seamless stainless steel pipe, a MOG holder and MGO head with a high temperature of 1800 degrees Celsius, 99 percent MGO rod, international high temperature MGO powder, Cr20Ni80 resistance wire, Ni-Mn lead wire, and silicone rubber wire serve as the mold heating elements in all of the products. Large-scale production at a fair price, attractive product design, and superior quality.
Products Specification
| Product name | customized cartridge heaters |
| Resistance heating wire | NiCr 80/20 wire |
| Sheath material | stainless steel 304,321,316, Incoloy 800, Incoloy 840 |
| Maximum temperature | 800 degree Celsius |
| Voltage | 380V,240V, 220V,110V,36V,24V or 12V |
| Thermocouple Location |
Type J Type K |

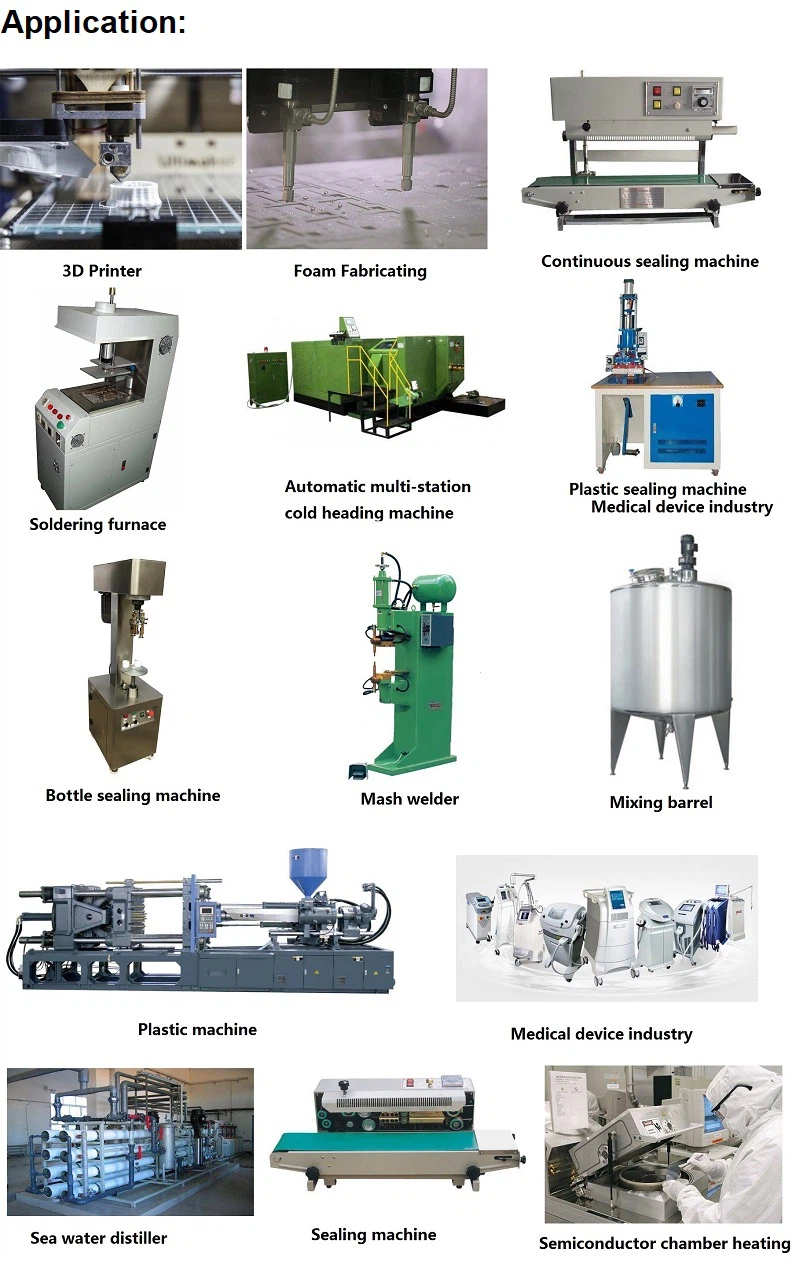

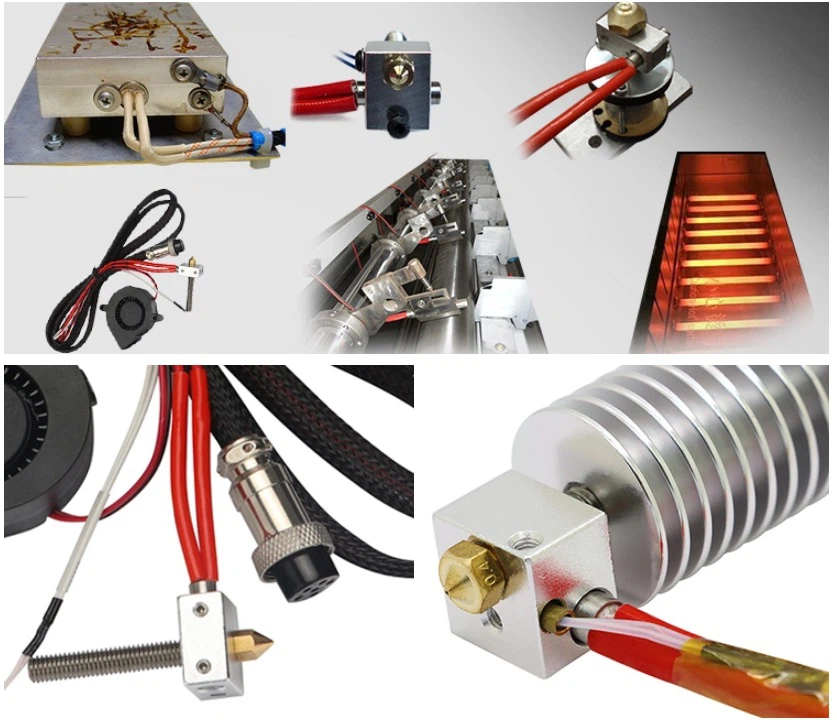

Products Application
Application
- Food processing
- Plastic moulds
- Medical equipment
- Hot stamping
- Liquid immersion
- Packaging equipment
Order tips
When order,please specify:
- Tube Diameter, Length, Volts/Watts
- Material, Quantity
- Lead option and length or terminal configuration, sheath material
- Whether L shape
- Heating length, working temperature, working environment
- Lead end no-heat if different from standard
- Optional accessories, finishing, internal construction
