Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of custom electric cartridge heating element in China, also supports custom service. Welcome to wholesale high quality custom electric cartridge heating element at competitive price from our factory.

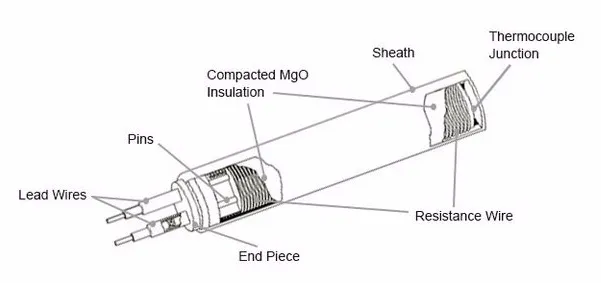

Custom electric cartridge heating element is a custom designed cylindrical heater made to fulfill specific requirements that standard, off-the-shelf cartridge heaters are unable to meet. These heaters are designed to specified dimensions, wattage, materials, and performance not found in off-the-shelf alternatives to suit the application requirements.
Specification
| Product name | Custom electric cartridge heating element |
| Diameter | 3mm or customized |
| Internal thermocouple | type J or K |
| Material | SUS201,304,321,316, and Incoloy800,840 |
| Connection Type | Threaded, Terminal, Lead Wires |
| Power | 50W – 5000W or customied |
| Voltage | 12V, 24V, 110V can be customied |
| Resistance Wire |
|
Key Feature
-
Efficient Heat Transfer
Made with high-quality stainless steel sheath (304/316) or Incoloy 800 for corrosion resistance.
Compact cylindrical design ensures even heat distribution and fast thermal response.
-
Customizable Options
large variety of lengths (20mm–1000mm) and diameters (6mm–25mm).
Adjustable watt density (up to 15W/cm²) for different temperature requirements (up to 750°C).
Optional thermocouples (J/K type) or RTD sensors for precise temperature contro
-
Durable & Safe
Magnesium oxide (MgO) insulation provides excellent dielectric strength and thermal conductivity.
There are designs that are resistant to chemicals, water, and explosions.
-
Easy Installation
Standard lead wires (fiberglass/Teflon) or terminal boxes for quick integration.
Fits tightly into drilled holes for optimal heat transfer (minimal air gaps).
Applications
-
Molds and Dies: In industrial operations such as injection molding, where accurate and consistent heating across molds and dies is crucial for maintaining the molds or dies at the proper temperature, custom cartridge heating elements are commonly used.
-
Extruders: Cartridge heaters are typically used to provide heat for the heating elements for plastic extrusion equipment when melting and forming the substrate.
-
Heat Treating: Cartridge heaters are capable of quickly achieving specific temperatures while providing controlled heating for processes such as hardening or tempering metals.
