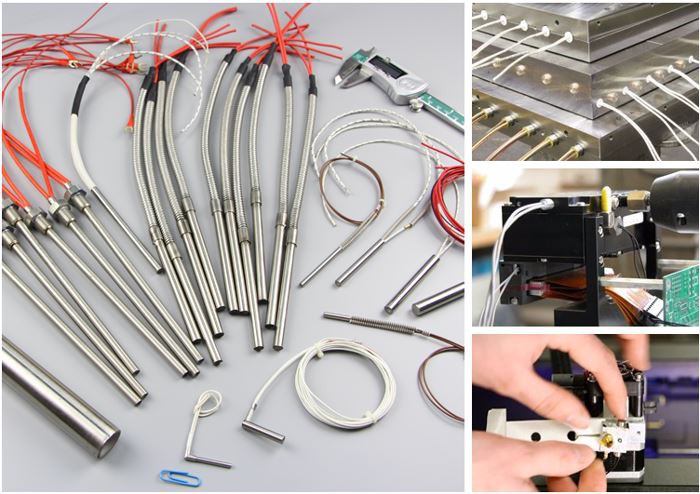

Cartridge Heating Element With Thermocouple
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of cartridge heating element with thermocouple in China, also supports custom service. Welcome to wholesale high quality cartridge heating element with thermocouple at competitive price from our factory.
Cartridge Heating Element With Thermocouple
The cartridge heating element with thermocouple is a high-load electric heating element, which is generally used for mold heating. Jaye is made of imported seamless stainless steel pipes, and for the high temperature of the pipe surface, thermal insulation and leakage current requirements under the working conditions of the product, the internal design uses high temperature resistant magnesium oxide rods, anti-oxidation nickel heating wires and nickel manganese Lead wire, fully consider the installation and use environment, and maintain the standardization degree of the pipe diameter to meet the customer's requirements for the safety and life of the heating element of the equipment. The cartridge heating element with thermocouple can directly measure the temperature, which is suitable for equipment that requires specific temperature. It has high thermal conductivity, adopts coreless grinding equipment, uniform and reasonable internal distribution, uniform heat transfer, fast heating, fast heat dissipation, stable quality, and long service life. It adopts a cartridge heating element made with a reasonable design and advanced technology. The quality is stable, the use safety is high, and the reasonable scientific design is made according to the specific use environment. The heating element works stably and has a long service life.
Technical Parameters:
Pipe diameter: 6-25MM.
Electric heating tube: SUS304 seamless tube.
Surface treatment: polishing.
Design voltage: 12V-440V
Electric heating tube sealing style: GLASS (glass) sealing, RTV.
Electrical performance: Long-term storage insulation value is greater than 50MΩ, leakage current is less than 0.5mA:
Quality Assurance: One year warranty.
Dimensional tolerance: pipe diameter: ±0.05MM, length: ±0.5MM
Power load: 1W/cm2 ~ 17W/cm2
Tube length: 30MM-2500MM.
Installation method: screw type, flange type, baffle limit type, etc.
Outgoing wire: high temperature wire, terminal, lug, etc.
Internal heating method: sectional type, soaking type, etc.
Use:
In addition to being widely used in the mold industry, heating rods are also used in fast sealing machines, shoe-making, cap-making machinery, cigarette machinery, hot press molding equipment, die-casting pipes, pipe-type machinery, pharmaceutical equipment, plastic molding molds and other fields. Wide range of applications.
