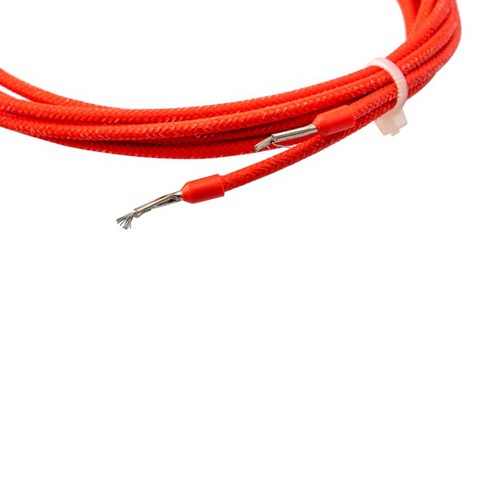

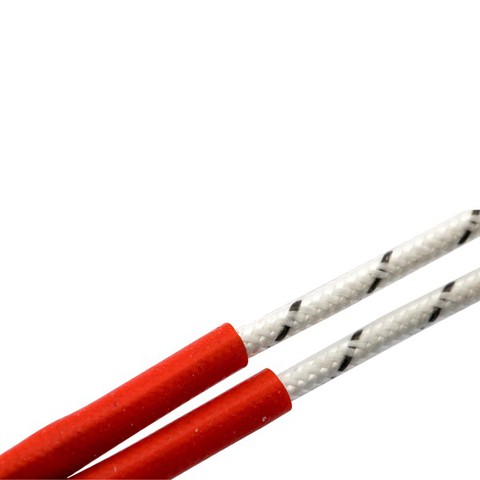

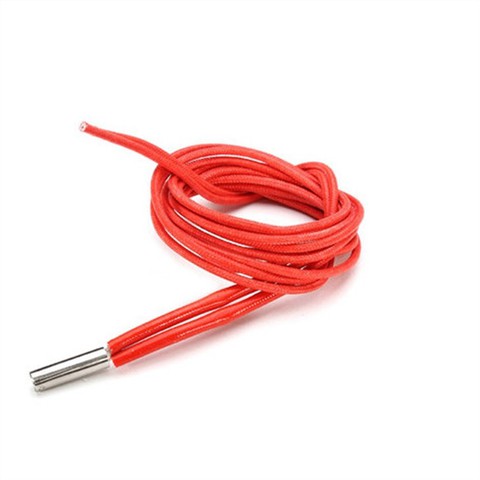

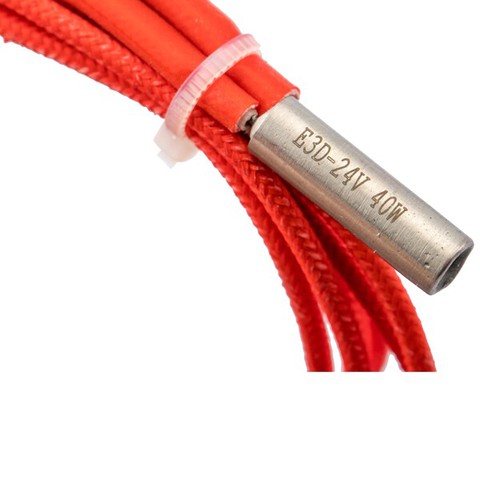

3d Printer Heater Cartridge 24v
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 3d printer heater cartridge 24v in China, also supports custom service. Welcome to wholesale high quality 3d printer heater cartridge 24v at competitive price from our factory.
Description of 3d printer heater cartridge 24v
A piece of equipment known as an electric heater cartridge is made of MgO powder or MgO tube, a ceramic cap, resistance wire (NiCr2080), high-temperature leads, and a seamless stainless steel sheath (304,321,316,800,840). typically in the form of a tube that is inserted through a series of drilled holes into metal blocks for heating purposes. There are two basic types of cartridge heaters: high density and low density.
Low density cartridge heaters are better suited for applications such as packing machinery, heat sealing, labeling machines, and hot stamping. High density cartridge heaters are used to heat plastic injection molds, dies, platens, and so on.
Products Specification
| Product name | 3d printer heater cartridge 24v |
| Sheath material | SUS304,321,316,Incoloy800,840 |
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Standard Cold Zone | 5-10mm |
| Thermocouple Location | type J or K are available |
Order tips
When order,please advice:
- Type of Cartridge Heater.(please refer to Termination Options)
- Diameter of Cartridge Heater.
- Overall length for a straight Cartridge Heaters.
- Wattage & Voltage
- Lead type(glass fibre / PTFE) & lead length.
