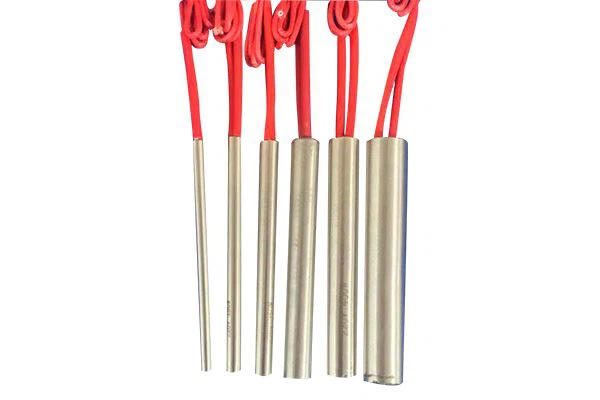

3D Printer Cartridge Heater With Lead Wire

Name: China Custom 3D Printer Cartridge Heater With Lead Wire Manufacturers, Suppliers, Factory - High Quality - Jaye Heater Technology
Brand: Jaye Heater
SKU: 115913807

This product is suitable for the detachable heating device of a 3D printer, which solves the technical problem of inconvenient heat insulation in the printer. The single-head heating tube selects metal materials that meet the needs of users as the element outer tube, the spiral heating wire and the lead rod are located in the middle of the metal sheath, and the terminal part is molded from synthetic materials.

Chat Now

Product Details

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 3d printer cartridge heater with lead wire in China, also supports custom service. Welcome to wholesale high quality 3d printer cartridge heater with lead wire at competitive price from our factory.

3D printing is a technology in which materials such as metal powder, plastic, photosensitive resin, etc. are stacked layer by layer using laser beams and hot melt nozzles. However, the plastic material in the storage device is easy to melt without heating, causing a large amount of premature melting and blocking the nozzle. This product is suitable for the detachable heating device of a 3D printer, which solves the technical problem of inconvenient heat insulation in the printer. The single-head heating tube selects metal materials that meet the needs of users as the element outer tube, the spiral heating wire and the lead rod are located in the middle of the metal sheath, and the terminal part is molded from synthetic materials.

Customized Cartridge Heater for 3D Printer:

1. Voltage & Wattage

2. The diameter of pipes(5.5-30mm)

3. The length of pipes(mini 30mm)

4. Optional tube material: SS304/SS321/SS316L/Stainless steel with coating (waterproof treatment), SS310S

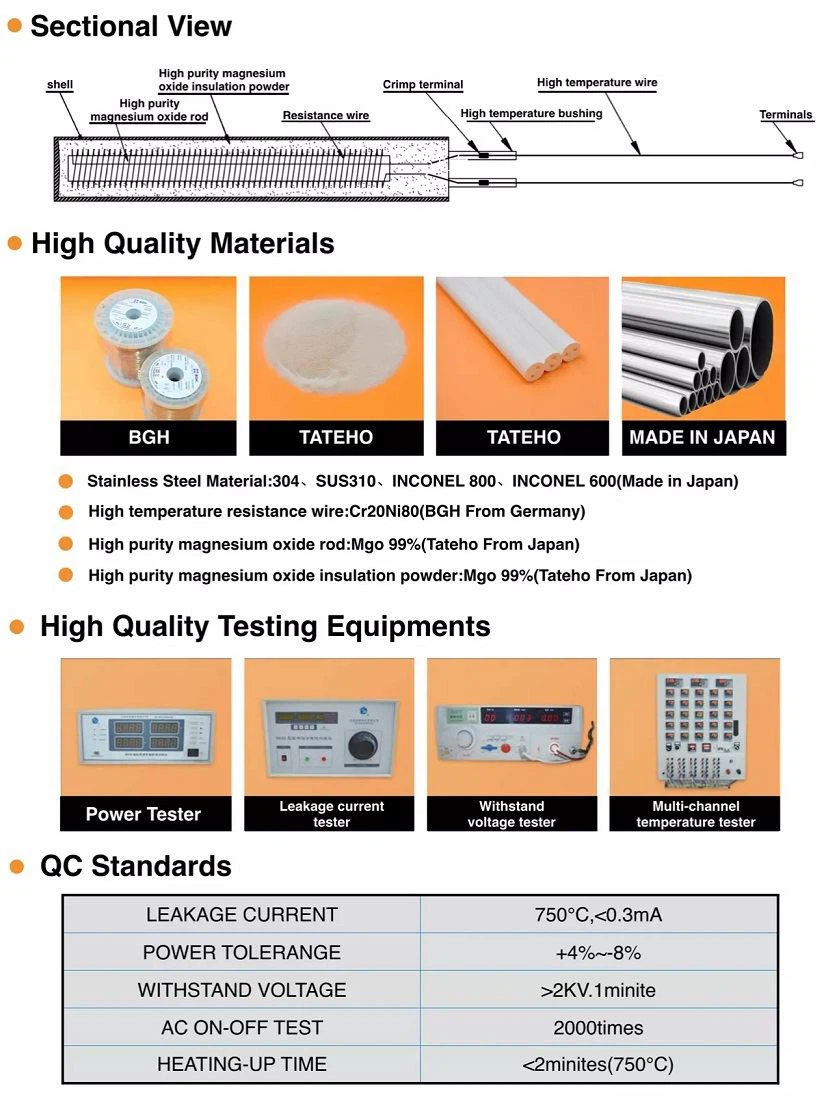

Quality

The Difference Between Single-head Tube and Common Tube:

1. Appearance: single-head tube has one end outlet, common tube has both ends outlet

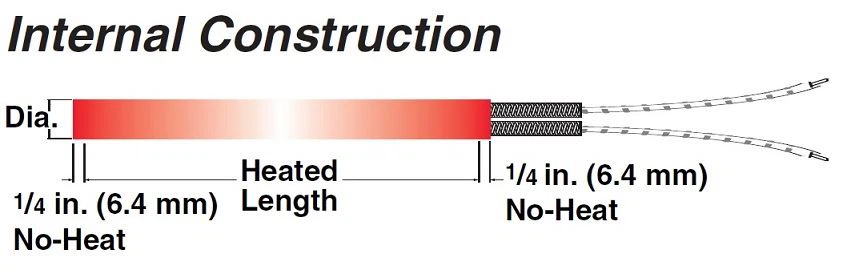

2. Internal structure: the winding resistance wire method of single-head cartridge heater is different from ordinary one.

3. Production process: There are more processes in the production of single-head electric heating tubes than ordinary electric heating tubes, such as shrinking tubes, which can ensure that the heating wire is isolated from the air, increase the area heat, extend the service life, and save 5% of the electric heat material, up to 90% thermal efficiency.

Application-Cartridge Heater
