12V Cartridge Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 12v cartridge heater in China, also supports custom service. Welcome to wholesale high quality 12v cartridge heater at competitive price from our factory.
Products Description
A nickel-chromium heat-resistant alloy wire wound on a magnesium oxide core rod with excellent insulation and thermal conductivity serves as the heating component of the cartridge heater's core. As an insulating material, magnesium oxide powder is used to fill the heating wire and shell, and the machine compresses the air inside to form a whole.
The fixing piece or thread can be installed in accordance with the requirements of the installation after the main body of the cartridge heater has been completed. The method of installing the heating tube is related to the fixing piece's thread structure. For the best solution, please get in touch with our sales or technical staff.
- High-grade nickel chromium resistance wire
- MgO core
- Stainless steel tube
- Built in cable, or swaged in
• Special sizes, wattages, and materials are available upon request;
• Custom-designed to meet your specifications.
• Pin leads are available
Products parameters
| Sheath Material | SUS 304/316/ Incoloy 840 |
| Spirals | Nickel - Chrome |
| Insulation | Magnesium Oxide Powder |
| Voltage Supply | 12V to a maximum of 480V |
| Maximum Temperature | 750 °C |
| Resistance Tolerance | + 5% -10% |
| Wattage Tolerance | +5% - 10% (closer tolerances are available upon special request) |
| All Cartridge Heaters are available with a built in Thermocouple Type J or K. | |
When ordering 12V Cartridge Heaters, please specify the following information :
1. Type of Cartridge Heater.(please refer to Termination Options)
2. Diameter of Cartridge Heater.
3. Overall length for a straight Cartridge Heaters.
4. Wattage & Voltage
5. Lead type(glass fibre / PTFE) & lead length.

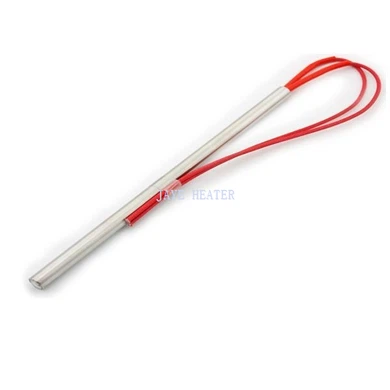

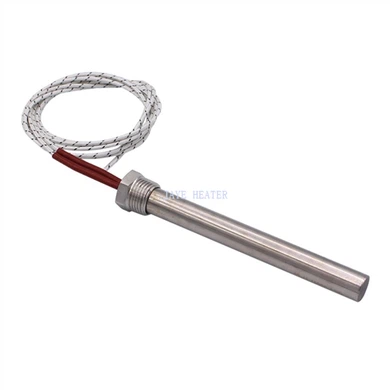

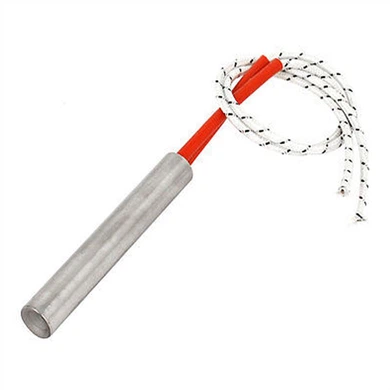

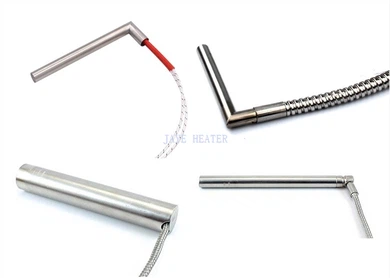

Product Picture
Applications
• Semiconductor chamber heating
• Semiconductor wire and die bonding
• Freeze protection and deicing of equipment in cold climates or applications
• Humidity control
• Patient comfort heating used in medical devices
• Mold die and platen heating
• Seal bars used in packaging equipment
• Test sample heating in gas chromatography equipment
