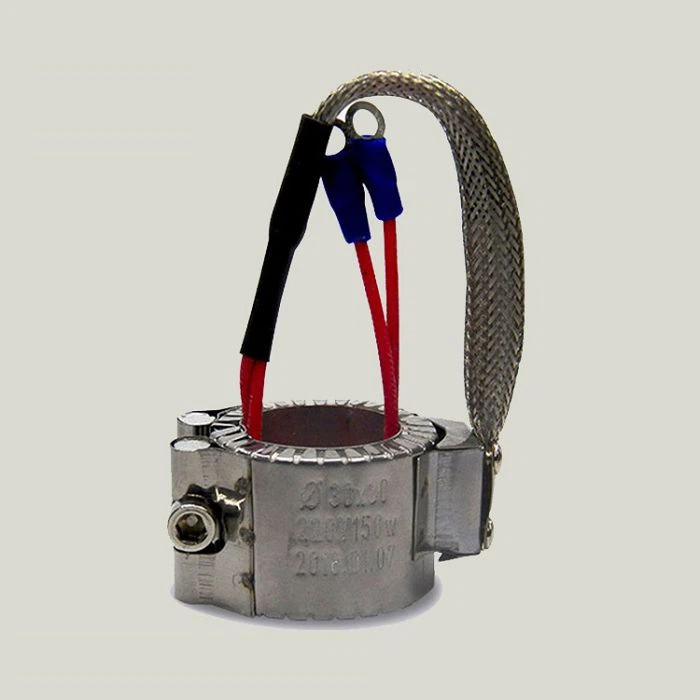

Ceramic Nozzle Band Heater
Ceramic nozzle band heaters is the Nozzle band heater heating elements insulated by ceramic parts. The nickel chrome resistance coil precisely stretched and strung through steatite ceramic cores forming a flexible heating mat. It is then placed in flexible stainless steel housing with ceramic fibre insulation.
Ceramic Nozzle Band Heater made by Jaye industry mainly for heating nozzles of injection molding and extruding machines, plastic machine, own superior performance and life expectancy also provides the best combination of physical strength, high Heating transfer & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 500°C along with Energy Saving.
Ceramic nozzle band heater
Stainless steel or Brass plate, Ceramic insulation and NI-CR resistance wire
Diameter 20mm, height 20mm
Gap Locking Type
Flange, barrel nut or none
Plug, ceramic block, screw or lead wire
Ceramic Nozzle band heaters made by Jaye industry with in-built thermocouples are also available. can be made in several types of dimensions, wattage, voltages and material. All specific requirements can be meet by Jaye industry.
Provides uniform heat distribution
CE and ISO certified
•Heating barrels of plastic injection molding machines and extruders
•Die and die holder heating of plastic extruders and blow molding machines
•Heat treating pipes
•Any application requiring heat applied to a cylindrical surface
To Order, Please Specify:
1.Vottage and Wattage
2.Heater Inside Diameter :(25mm, 30mm, 40mm, 60mm, 80mm, 100mm and other can be customized)
3.Heater Height :30mm, 40mm, 60mm, 80mm, 100mm and other can be customized.
4.Termination Stype :screw terminal, plug terminal, ceramic block terminal or lead wire terminal.
