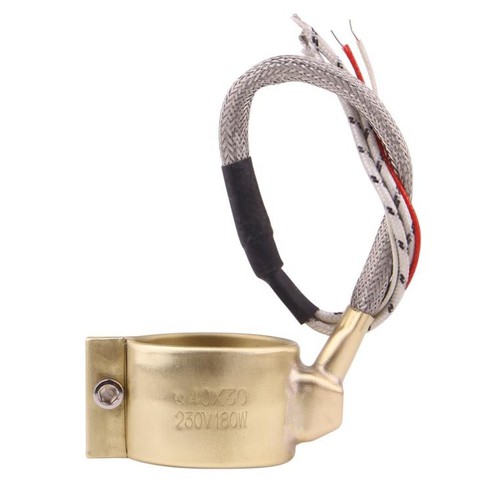

Brass Nozzle Band Heater For Injection Molding Machine

Brass nozzle band heater are available in a variety of designs and styles suitable for different applications. The connection between the heating element and the leads is protected by a special fitting made of brass 1 mm thick, without welding which allows a high mechanical strength in the most delicate area of the heater. The result is more efficient heat transfer-a performance solution lowering element wire temperatures and increasing heater. Brass sealed nozzle heaters are submitted to extremely high pressure that ensure high insulation, excellent thermal exchange, lack of internal voids, perfectly smooth contact area for an optimum and uniform heat transfer to every part of the nozzle.
Chat Now

Product Details

For the injection molding machines heating working, the heating element is one of the most important part, Brass nozzle band heater are available in a variety of designs and styles suitable for different applications, especially working on the injection mold machine. The connection between the heating element and the leads is protected by a special fitting made of brass 1 mm thick, without welding which allows a high mechanical strength in the most delicate area of the heater. The result is more efficient heat transfer-a performance solution lowering element wire temperatures and increasing heater.



Parameters:

Product Name

Nozzle Band Heaters

Advantage

High working temperature and   long usage lifetime

Certification

ISO9001, CE

Heating Element

Nickel   Chrome wire or FeCr

Voltage

120V, 240V, 480V, 600V and   so on

Power

50-2000W, or customized

Thickness

customized

Min size

25*25mm

Thermocouple

Type   k or J thermocouple availabe

Warranty

1 year



Brass Nozzle Band Heater Characteristics:

* Sealed band heater in brass, with folded ends
* Band heater connection

* Electric insulation by mica plate
* Connection: nickel core, fiberglass insulated, and earth wire, protected by a galvanized steel braid
* Max. operating temperature over the surface of the heater 500℃

* Brass heaters can be built-in J/k thermocouple.


Application-Band Heater
