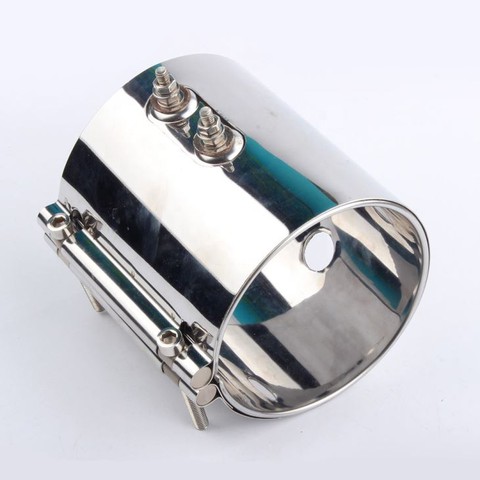

Stainless Steel Mica Insulated Band Heater

Stainless Steel Mica Insulated Band Heater made by Jaye industry used the nature mica as the isulation.The most commonly used thickness of natural mica gasket is 0.1mm, which can be used for a long time within 600 ℃. Generally, the mica gasket with certain thickness and shape, which is made of...
Chat Now

Product Details

Stainless Steel Mica Insulated Band Heater made by Jaye industry used the nature mica as the isulation.The most commonly used thickness of natural mica gasket is 0.1mm, which can be used for a long time within 600 ℃. Generally, the mica gasket with certain thickness and shape, which is made of high-quality natural mica through peeling, thickness fixing, cutting and punching, has the characteristics of high temperature resistance, voltage resistance, insulation and heat dissipation,etc.

cb


The stainless steel mica Insulated Band heater made by Jaye industry own the features of fast heating, high heating transfer efficiency, durable, safety, high quality and long service time.


Technical Parameters:

Min Diameter

25mm

Max Height

300mm

Max Temp.

350°C

Insulation Material

Highly flexible mica

Shell Material

Stainless steel or galvanized sheet

Power density

Standard power density 2 ~ 3W / cm2, maximum   3.5w/cm2

Standard Voltage

AC220V,380V,DC customized


Terminal interface style:

Terminal style

FAQ

Q: The size and the specification?
A: We provide private custom service for you. You can specify the size, voltage, power, operating temperature and so on as you like.
Q: Certification?
A: UL, CUL, CE, ROHS, REACH, ISO, IATF16949.
Q: What is the delivery time?
A: Generally 3-10 days for regular samples, 15-30 days for batch orders.


Application-Band Heater

Packing & Delivery

Quality-Band Heater
