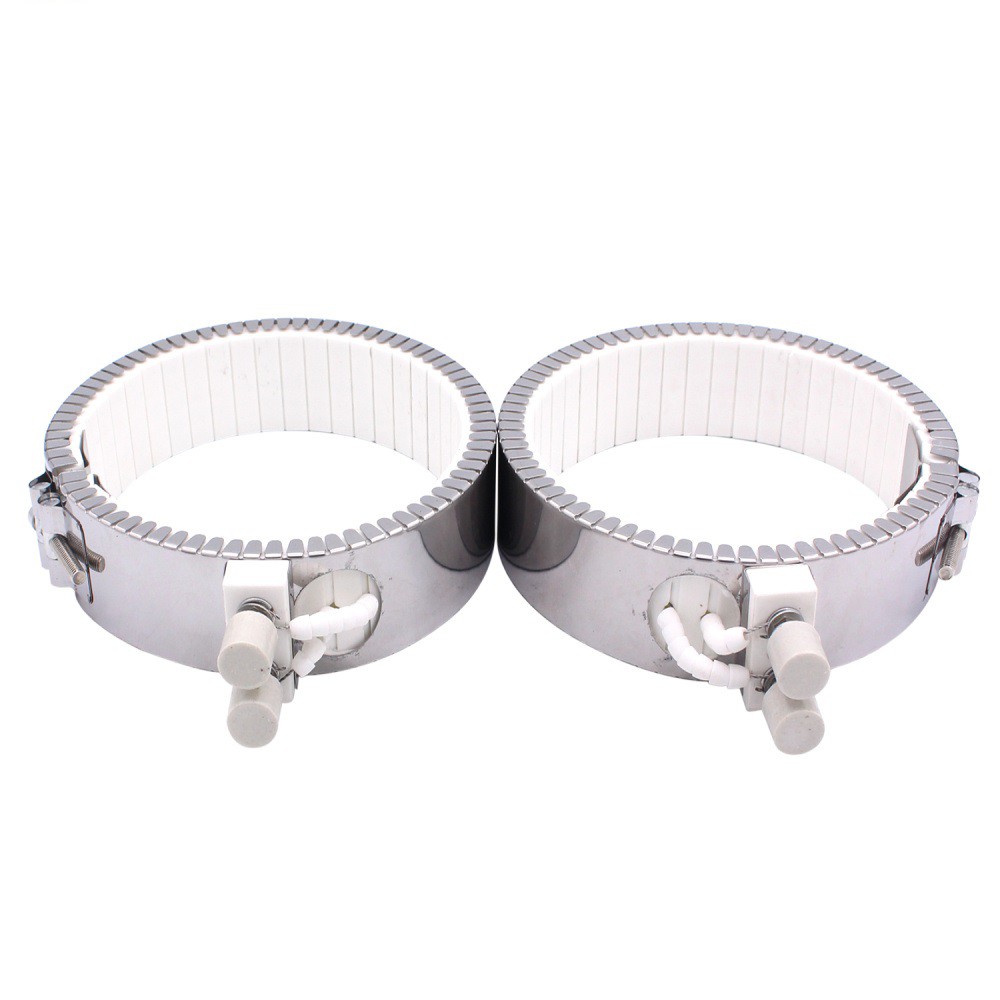

Injection Mold Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of injection mold heater in China, also supports custom service. Welcome to wholesale high quality injection mold heater at competitive price from our factory.
Jaye injection mold heater is a kind of heater with uniform heating division and relatively good thermal conductivity of metal alloy to ensure uniform temperature on the hot surface and remove hot and cold spots of the equipment. It has the advantages of long life, good heat preservation performance, strong mechanical performance, corrosion resistance and magnetic field resistance. The outer heat surface will be increased insulation device, the inner heat surface sintered infrared so that electricity can be saved. The injection mold heater is typically located around the perimeter of the mold and heats the metal evenly to a consistent temperature. This helps to ensure that the plastic material flows smoothly into the mold and that the finished part has the desired shape and dimensions. The temperature of the mold must be carefully controlled to ensure the quality of the finished part, and the injection mold heater plays a critical role in this process.
Specification of Electric Injection Mold Heater:
Temperature: 0-350℃ |
| Voltage: 220v/800V or customized |
| Power: 50-2000W or customized |
| Insulation resistance: ≥ 100MΩ |
| Widely used in plastic machinery, molds, cable machinery, alloy die-casting machines, pipelines, chemical, rubber, petroleum, coal to electricity chimney and other equipment. |
Electric Injection Mold Heater features and use
Product features: simple processing, reliable work, easy to use, rapid temperature rise, high thermal efficiency, low power consumption, long service life, production is not subject to model and specification size constraints and other advantages.
Product use: widely used in plastic machinery, packaging and printing, petrochemical, electronic equipment and other industries.

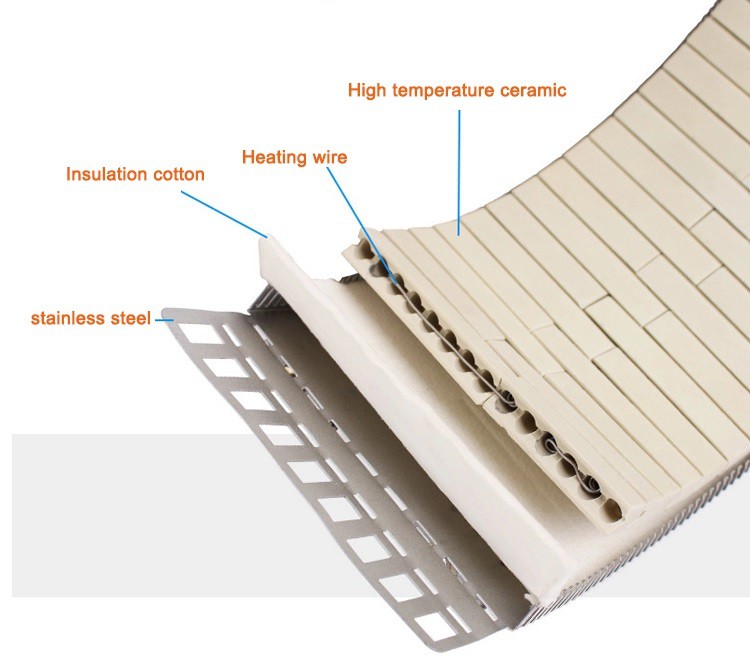

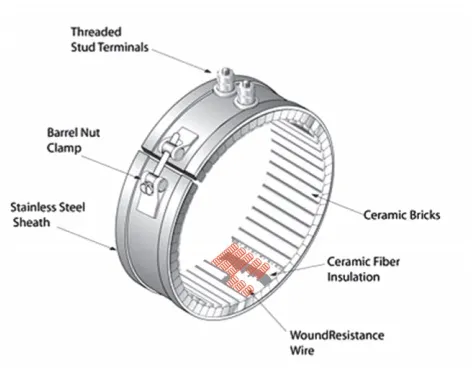

Electric band heater with 0.3~0.5mm stainless steel plate as the shell, the middle with high insulation and high temperature resistant mica plate as the core, evenly wound with a variety of standard specifications of nickel-chromium alloy resistance wire as the heating body, processed into various shapes required by the molding machine. It can be wired according to the user's requirements, voltage from 110V, 180V, 220V, 380V, power load per square 3.5 W. The outer heat sink will increase the heat insulation device, and the inner heat sink will be sintered infrared so as to save electricity. Extruder mica electric heater has specifications such as circle type and plate type.
Installation and use precautions of Injection Mold Heater:
The electric heating element should be installed in the position of the contact surface should be flat without bump phenomenon.
This electric heating element should be placed dry, avoid immersion in water to affect its insulation performance.
Installation should first check the installation position and electric heating element specifications are consistent, the use of voltage is consistent.
After installation, you should check the inner six feet bolts, wiring base bolts and wiring bolts are locked tightly, in order to avoid thermal expansion and contraction affect the life of the product.
The product should be used at the specified voltage, taking into account the large changes in voltage at night in some areas, the company recommends the use of voltage regulators, to avoid affecting the efficiency and life of the product
FAQ
(1). Q: Can you give me a discount price?
A: It is depending on the quantity. The larger the quantity is, the more discount you can enjoy.
(2). Q: How can I get a sample?
A: Normally For most our products can be sent free of sample charge if the quantity is small and customers only need to bear the shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us. If the quantity is big, we need to charge a sample fee.
(3). Q: Why does your price a bit higher than other Chinese suppliers?
A: We are focusing on manufacuturing high quality performance products in order to establish a long term and friendly cooperation with all customers.
Our price maybe not the lowest, but our cost performance is the highest.
(4). Q: How can you guarantee the quality of mass production keep the same with the sample sent to me before?
A: Our warehouse staff will leave another same sample with your company name marked in our company before sending the samples to you to ensure the same production as the samples.
