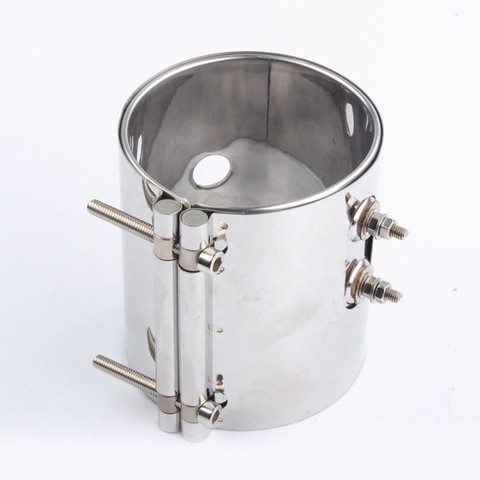

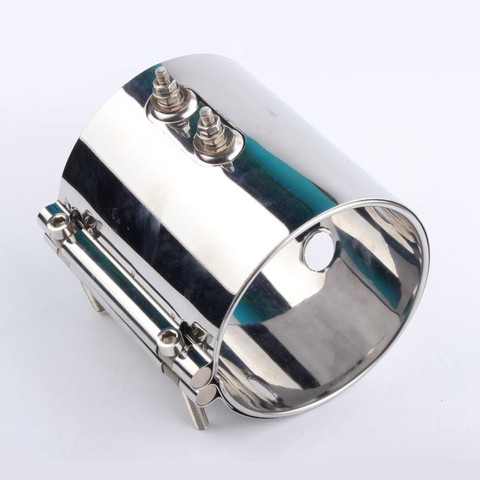

Screw Barrel Ceramic Heater Band For Extrusion Machine

The Ceramic band heater for plastic processing machine made by Jaye industry has the advantages of long working life, firmness and durability, energy saving, convenient installation, high temperature resistance, fast heat transfer, good insulation, and free from the limitation of model and...
Chat Now

Product Details



The Ceramic band heater for plastic processing machine made by Jaye industry has the advantages of long working life, firmness and durability, energy saving, convenient installation, high temperature resistance, fast heat transfer, good insulation, and free from the limitation of model and specification.

 0

According to the wiring mode required by the user, the voltage can be 36V, 110V, 180V, 220V, 380V, and the maximum power load is 6.5W per square meter. Compared with the traditional electric heater, the energy consumption can be reduced by 30%.

The ceramic heater is different from other belt heaters. The ceramic heater can radiate the barrel and add 12.5mm ceramic fiber as the insulation layer, which can save 25% energy. It can also be used for the air inlet and exhaust of the extruder barrel with the metal cover for air cooling, so as to maintain a strict extrusion temperature.



Flexible connection mode: according to the customer's requirements, you can choose Y type connection (hard outlet), five eye high-frequency porcelain block, high-temperature soft outlet, explosion-proof junction box, plug type and other non-standard connection modes.



Parameters:

Industrial Heater

Ceramic Band Heater for Injection   Molding Machine

Resistance Wire

NiCr 80/20

Sheath

304 stainless steel

Insulation

ceramic

Terminal

ceramic   terminal/flange/lead/terminal box and customized

Heater Voltage

120V 220V 230V 240V 480V standard (other voltages available on request)

Wavelength range

2-10 microns

Operating Temperature

300°C to 700°C (572°F - 1292°F)

Operating Life-Up

20,000 hours

Radiation distance

100 mm to 250 mm


Application-Band Heater
