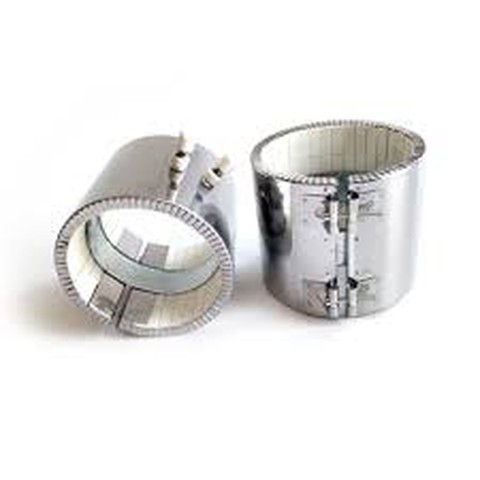

Plastic Extruder Ceramic Heater Ring

Name: China Custom Plastic Extruder Ceramic Heater Ring Manufacturers, Suppliers, Factory - High Quality - Jaye Heater Technology
Brand: Jaye Heater
SKU: 104319196

A plastic extruder ceramic heater ring is a component used in plastic extrusion machinery to heat and melt plastic pellets or granules. The ceramic heater ring is made of high-temperature resistant ceramic material and is designed to fit around the barrel of the plastic extruder.

Chat Now

Product Details

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of plastic extruder ceramic heater ring in China, also supports custom service. Welcome to wholesale high quality plastic extruder ceramic heater ring at competitive price from our factory.

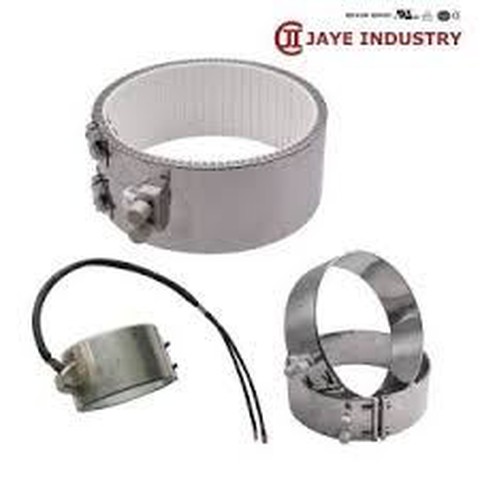

Plastic extruder ceramic heater rings made by Jaye are popularly used for injection plastic molding machine, meltblown making machine, plastic extruders, paper processing equipment machinery, etc. It is also called ceramic band heater, ceramic nozzle band heater. For extruder machines are normally used specifications of width 45mm, 55mm, 65mm, 90mm, 105mm. _20170726120609094 -

The ceramic heater ring works by applying heat to the plastic pellets as they move through the extruder barrel. The heat from the ceramic heater ring softens and melts the plastic material, allowing it to be shaped and formed as it passes through the extrusion die. The operating temperature of the ceramic heater ring can reach up to 600℃. The maximum surface loading rate is 8 w/ cm2. It also has many advantages including the fast speed of heating, high rate of heat utilization, excellent energy-saving(energy consumption is reduced by 30%), high resistance of high insulation rate. It is one of the most suitable: electric heaters for plastic extrusion and injection machines, plastic hollow, and blowing machines, and chemical fiber molding machines.

Features of plastic extruder ceramic heater ring

Customized size with different diameter and height.
Inside medium-high temperature heaters up to 1200° F
Outside shell temperature: 350° - 450° F
Thickness: 12mm
The broad range of terminal types and thicknesses of ceramic fiber insulation mats

10-32-Threaded-Terminals_Wi-OPT-Style_6

Detail specifications of extruder ceramic heater ring

Sheath Material	Stainless Steel cover for ceramic band heater
Connection Method	1.Metal box 2.Screw post terminals 3. High Temperature Plug 4.High temperature cable/ 5.Ceramic block
Nominal Wall Thickness	Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation)
Heating Elements (coil)	Cr20Ni80
Lead Wire Terminals	1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat shrink sleeving 2.Plain lead wire: straight lead exit/ exiting both sides of the gap/ used 3.mostly with nozzle heaters/ 180° from gap 4.PTFE insulated wire 5.Fiberglass insulation wire

u=1835087647,3590439289&fm=11&gp=0

u=2618640078,1055624868&fm=26&gp=0

Structure of the Plastic Extruder Ceramic Heater Ring:

QQ图片20200410173121

Plastic Extruder Ceramic heater rings made by Jaye heater are preferred for plastic extrusion machinery due to their durability and ability to withstand high temperatures. They are also more energy-efficient than other types of heating elements and provide more uniform heating of the plastic material.

Application-Band Heater
