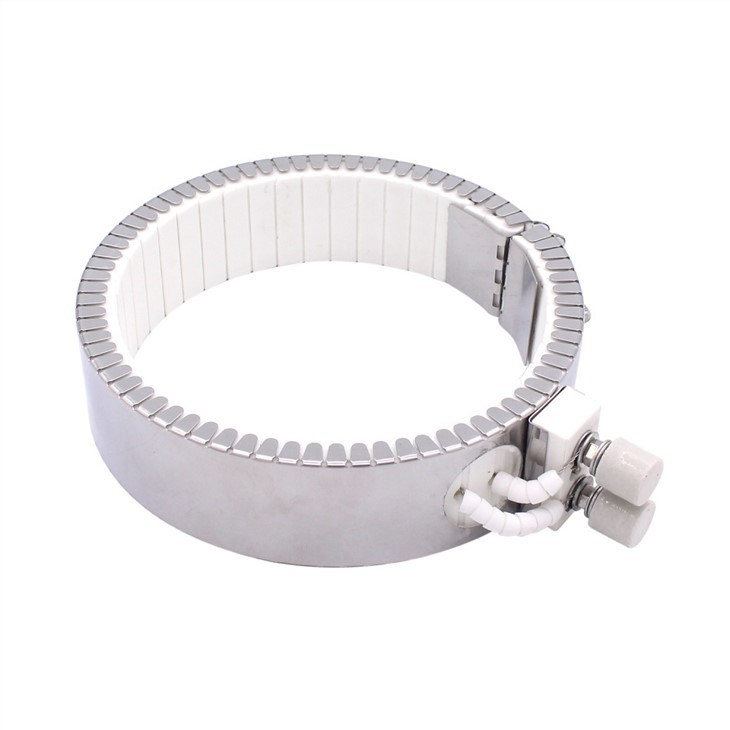

Band Heating Element

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of band heating element in China, also supports custom service. Welcome to wholesale high quality band heating element at competitive price from our factory.

The band heating element uses a heating wire as a heating element, It can be closely attached to the heated body, has the characteristics of uniform heating, good thermal conductivity, and long service life. This product is currently one of the ideal heaters at home and abroad. A thermal insulation layer can be added to the outside of the heater according to user needs, which has higher thermal efficiency and can save electricity by about 20%. They are widely used in plastic machinery, molds, cable machinery, alloy die casting machines, pipelines, chemicals, rubber, petroleum and other equipment.

The alloy heating wire is used as the heating element, and natural mica is used as the insulating layer. The outer layer is made of stainless steel as the conductive heating layer. The mica heating ring can be machined into rings, plates, and various special-shaped products according to customer needs. .

The stainless steel  heating coil produced by our company is customized according to customer needs, including the diameter, height and interface of the heating coil, which can meet most of your needs. Using domestic high-quality resistance wire and insulating materials, combined with decades of production experience and technology, effectively guarantee the quality and service life of the product.

Features:

● Lightweight and easy to install, can be closely attached to the cylinder, high heat transfer efficiency

● Fast heating and uniform heating

• Cylindrical heaters mainly used for heating the cylinders and nozzles of various extrusion molding machines;

• The wrapping shell is made of stainless steel or galvanized sheet, which is similar to the heating element directly conducting heat to the object to be heated, with high efficiency;

• It is a widely used and economical heater.

 Technical parameters

• Minimum diameter: 25mm Maximum height: 300mm Maximum operating temperature: 350°C

Insulation material: highly flexible mica Shell material: stainless steel or galvanized sheet

• Power density: the standard power density is 2~3W/cm2, the highest is 3.5W/cm2

• Working voltage: AC220V, 380V, DC (direct current) can be customized.
