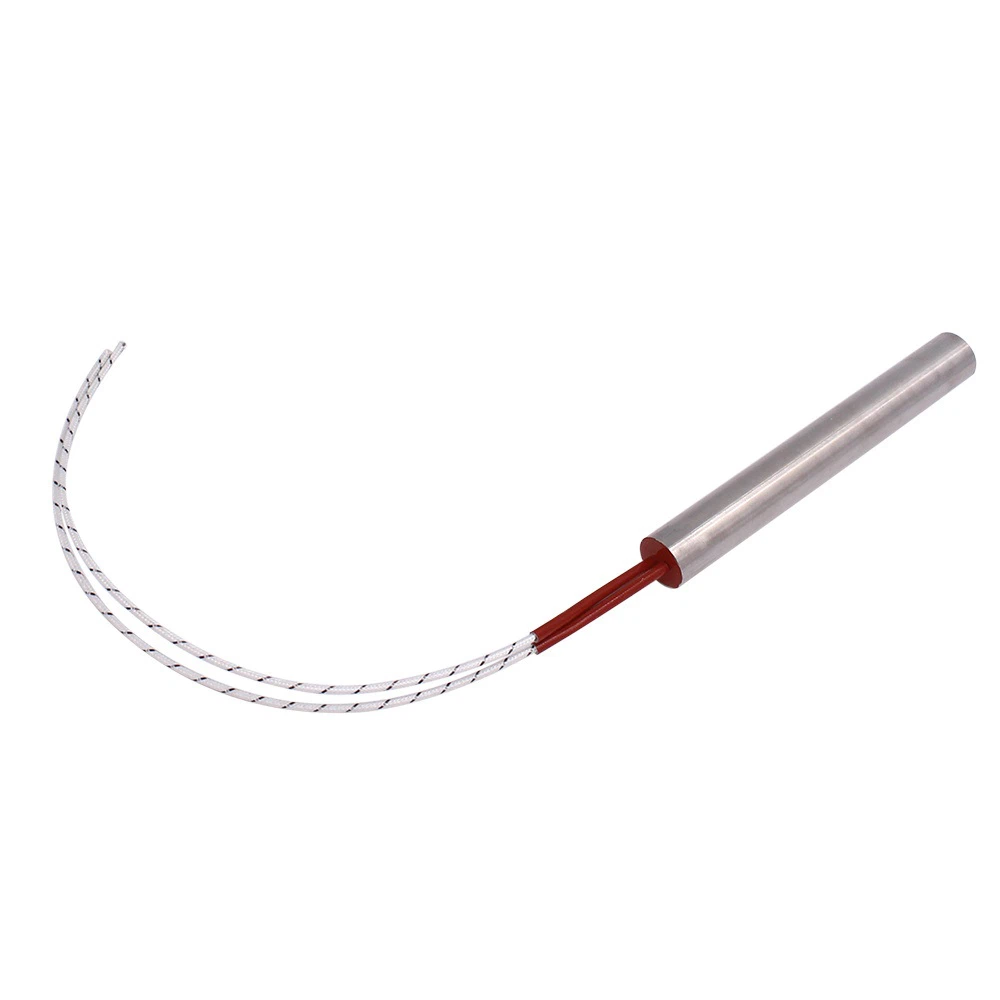

Stainless Steel Cartridge Heater

A Stainless Steel Cartridge Heater is a cylindrical, tubular heating element designed to be inserted into a tightly matched hole in a metal block, plate, mold, or other assembly. Its primary function is to conduct heat efficiently into the surrounding material, providing localized, intense, and precise heating.

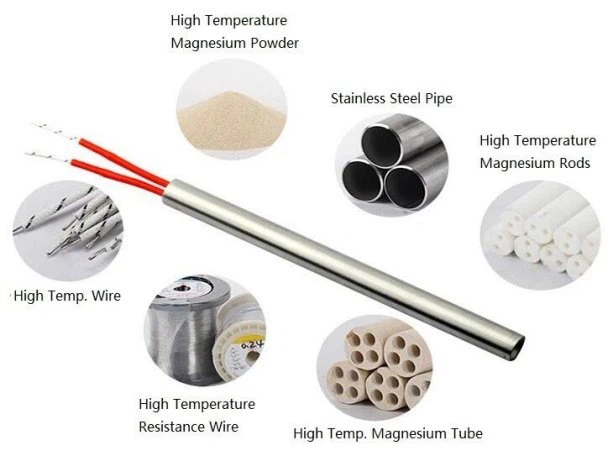

Constructed with a resistance coil wound around a ceramic core and insulated by magnesium oxide (MgO) powder within a stainless steel sheath, it is engineered for high watt density and long life. The stainless steel sheath (typically SS 304, 321, or 316) provides excellent resistance to corrosion and oxidation. These heaters are a cornerstone of industrial heating where space is constrained, and efficient heat transfer into a specific mass is critical, such as in plastic molding, hot stamping, and packaging equipment.

1-High Power Density: Their compact design allows for a very high concentration of wattage (watt density), enabling rapid heating of the host material.

2-Precision Heating: Ideal for heating specific, critical areas of a mold, plate, or barrel, allowing for exact temperature control zones.

3-Easy Installation & Replacement: Designed to be slipped in and out of a drilled hole, making maintenance and reconfiguration straightforward.

4-Efficient Heat Transfer: The key to their performance is a tight fit in the mounting hole. This minimizes air gaps (a poor thermal conductor) and maximizes conduction into the metal.
