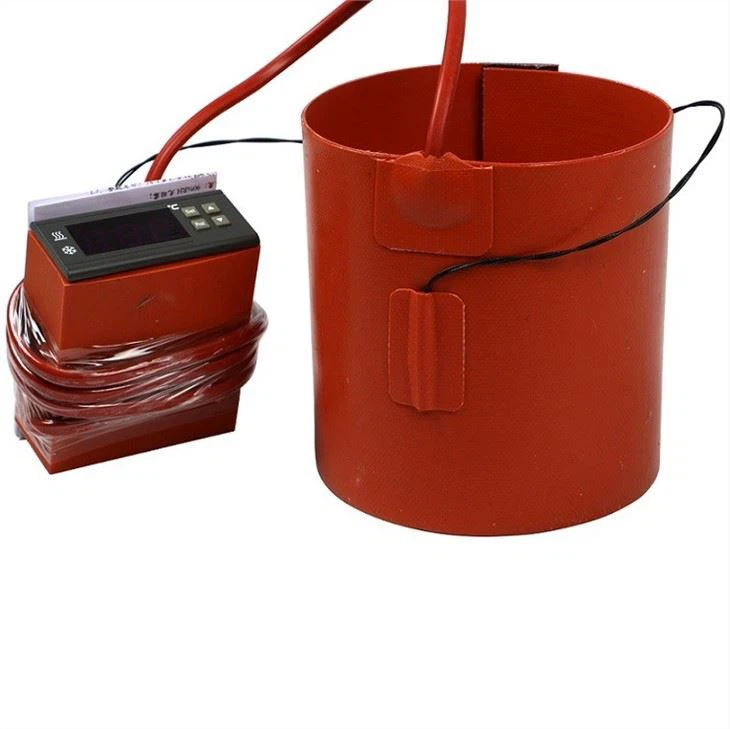

Silicone Rubber Bucket Heaters

The silicone rubber bucket heater for 200-liter metal drums is a charged film with a standard thickness of 1.5mm, using nickel-chromium wire or etched into certain shapes of 0.05mm~0.10mm thick nickel-chromium foil. Both sides of the heating components are wrapped with thermal and insulating...
Chat Now

Product Details

The silicone rubber bucket heater for 200-liter metal drums is a charged film with a standard thickness of 1.5mm, using nickel-chromium wire or etched into certain shapes of 0.05mm~0.10mm thick nickel-chromium foil. Both sides of the heating components are wrapped with thermal and insulating materials, and are completed in high-temperature compression molding and aging heat treatment.

We custom Various size, and if you have any requirements, just let us know.

10 -

Product specification

1.Working Temperature Range:1 - 220 °C

2.Voltage:12v-380v

3.Watt:0.01-2w/cm2

4.Wattage Tolerance:+/- 5%

5.Size:Customized

6.Characteristic:efficiency long service life, work safe, high strength, fast heat diffusion, uniform heat transfer

 Drum heater



Structural performance

(1) It is mainly composed of nickel-chromium alloy wire and insulating material, which has fast heat generation, high thermal efficiency and long service life.

(2) The heating wire is wound on the alkali-free glass fiber core frame, and the main insulation is silicon rubber, which has good heat resistance and reliable insulation performance.

(3) Excellent flexibility, can be directly wound on the heating device, with good contact and uniform heating.

 famille-produit-flexmat-g

Product precautions

(1) When installing, the silicone rubber flat side of the heating tape should be close to the surface of the medium pipe and tank, and fixed with aluminum tape.

(2) In order to reduce heat loss, a thermal insulation layer should be added outside the heating tape.

(3) It is strictly forbidden to install with overlapping winding to prevent overheating damage.

QQ20191123130042Mounting types of Silicone Rubber Heater For Respirator Heating Sheath

FAQ

(1).Q:  Will you accept customized requirement?
A: Of course, customized service is surely acceptable. Welcome to send us your drawing and more detailed specification parameters. We can supply you the products as per your specific requirements.

. Q: How can I get a sample?
A: Normally For most our products can be sent free of sample charge if the quanity is small and customers just need to bear the shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us. If the quantity is big, need sample charge.


Application-Silicone Rubber Heater

Hot Tags: silicone rubber bucket heaters, China, manufacturers, suppliers, factory, wholesale, customized, electric, high quality


Packing & Delivery

Quality-Silicone Rubber Heater
